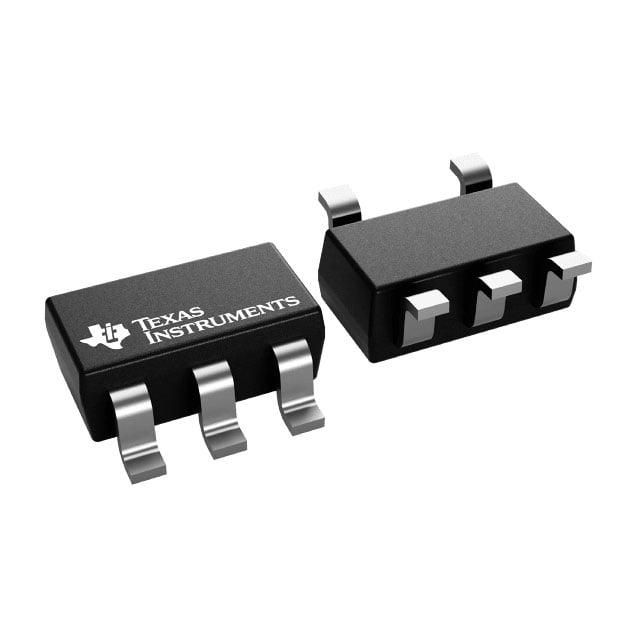

TLV3601QDBVRQ1 SOT-23-5 package
TLV3601QDBVRQ1 SOT-23-5 package
Texas Instruments

TLV3601QDBVRQ1 - Texas Instruments Circuitos integrados de RF

Only 1 left
SKU: TLV3601QDBVRQ1-SOT-23-5
(0)
$4.07
Después de realizar un pedido, nuestro equipo de ventas le enviará una confirmación por escrito del precio final, los gastos de envío y el tiempo estimado de entrega. Los derechos de importación, impuestos, tarifas de corretaje y otros cargos de destino son responsabilidad del cliente. Cuando sea necesario, podemos ayudar con la información del producto disponible y los documentos aduaneros para la declaración de importación; El despacho de aduana final y el pago siguen siendo responsabilidad del cliente.

TLV3601QDBVRQ1

CMOS, Push-Pull, Rail to Rail 1 2.4V ±2.75V, 5.5V 5mV@ 5V 5µA@ 5V SOT-23-5 surface mount, adhesive mount

Available Stock: 1SOT-23-5Active
ManufacturerTexas Instruments
PackageSOT-23-5
Stock1
Standard Pack3000

Pricing & Ordering

Unit Price$4.0746

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number TLV3601QDBVRQ1
IC Category RF Integrated Circuits
Package SOT-23-5
Lifecycle Status Active

Technical Attributes

Type Standard (General Purpose)
Number of Elements 1
Output Type CMOS, Push-Pull, Rail-to-Rail
Voltage - Supply, Single/Dual (±) 2.4V ~ 5.5V
Voltage - Input Offset (Max) 5mV @ 5V
Current - Input Bias (Max) 5µA @ 5V
Current - Output (Typ) 30mA @ 5V
Current - Quiescent (Max) 7mA
CMRR, PSRR (Typ) 80dB CMRR, 80dB PSRR
Propagation Delay (Max) 3.5ns
Hysteresis 5mV
Operating Temperature -40 degC ~ 125 degC
Grade Automotive
Qualification AEC-Q100
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
Supplier Device Package SOT-23-5

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
