DRV8812RHDT - Texas Instruments ドライバおよびインターフェースIC

Name: DRV8812RHDT - Texas Instruments ドライバおよびインターフェースIC
Brand: Texas Instruments
SKU: DRV8812RHDT-QFN
Price: 3.79 USD
Availability: InStock

In stock

SKU: DRV8812RHDT-QFN

(0)

$3.79

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

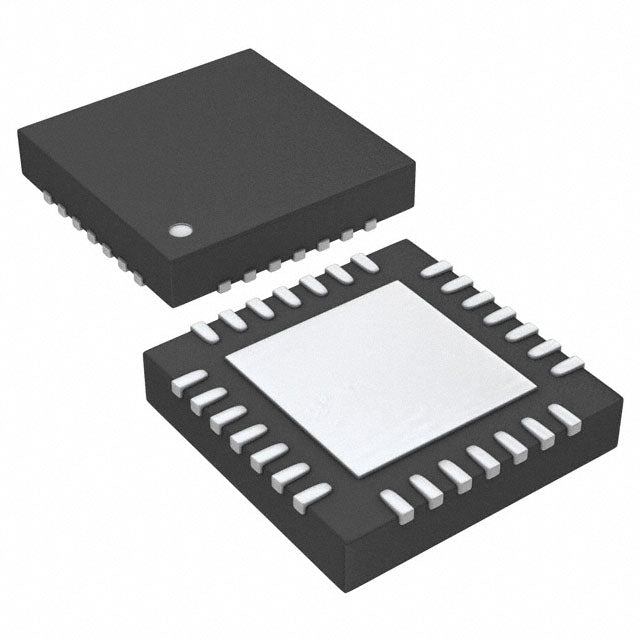

DRV8812RHDT

8.2V~45V (4) Power MOSFET 1A dualelectric 8.2V 45V Parallel Control and Power Stage, Driver - Fully Integrated QFN surface mount, adhesive mount 950µm(high)

Available Stock: 250QFNObsolete

ManufacturerTexas Instruments

PackageQFN

Stock250

Standard Pack1

Pricing & Ordering

Unit Price$3.7923

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	DRV8812RHDT
IC Category	Driver & Interface Integrated Circuits
Package	QFN
Lifecycle Status	Obsolete

Technical Attributes

Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Parallel
Technology	Power MOSFET
Step Resolution	-
Applications	General Purpose
Current - Output	1.6A
Voltage - Supply	8.2V ~ 45V
Voltage - Load	8.2V ~ 45V
Operating Temperature	-40 degC ~ 150 degC (TJ)
Mounting Type	Surface Mount
Package / Case	28-VFQFN Exposed Pad
Supplier Device Package	28-VQFN (5x5)

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
