UCC28600DR - Texas Instruments RF集積回路

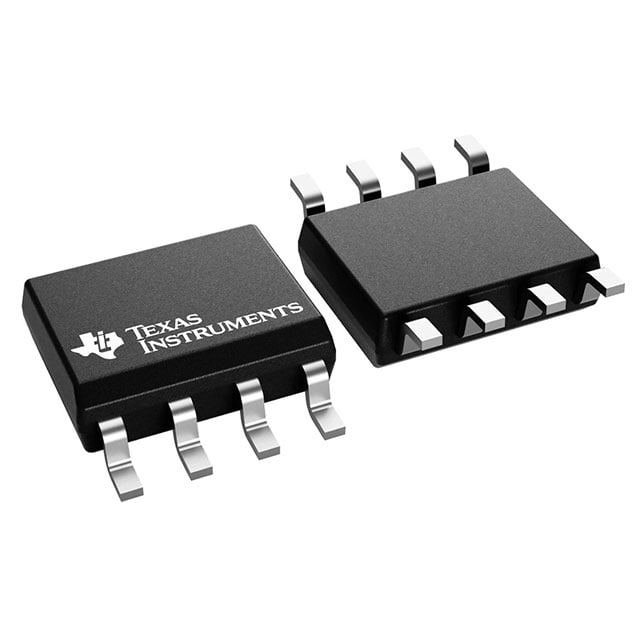

Name: UCC28600DR - Texas Instruments RF集積回路
Brand: Texas Instruments
SKU: UCC28600DR-SOIC-8
Price: 1.08 USD
Availability: InStock

In stock

SKU: UCC28600DR-SOIC-8

(0)

$1.08

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

UCC28600DR

8V~21V Flyback 40KHz~130KHz 200W 1.2A 9.3V 32V No temp, 99% SOIC-8 surface mount 1.75mm(high)

Available Stock: 83SOIC-8Active

ManufacturerTexas Instruments

PackageSOIC-8

Stock83

Standard Pack2500

Pricing & Ordering

Unit Price$1.0751

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	UCC28600DR
IC Category	RF Integrated Circuits
Package	SOIC-8
Lifecycle Status	Active

Technical Attributes

Output Isolation	Isolated
Internal Switch(s)	No
Voltage - Breakdown	-
Topology	Flyback
Voltage - Start Up	13 V
Voltage - Supply (Vcc/Vdd)	8V ~ 21V
Duty Cycle	99%
Frequency - Switching	40kHz ~ 130kHz
Power (Watts)	200 W
Fault Protection	Current Limiting, Over Temperature, Over Voltage
Control Features	Soft Start
Operating Temperature	-40 degC ~ 105 degC (TA)
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Mounting Type	Surface Mount

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
