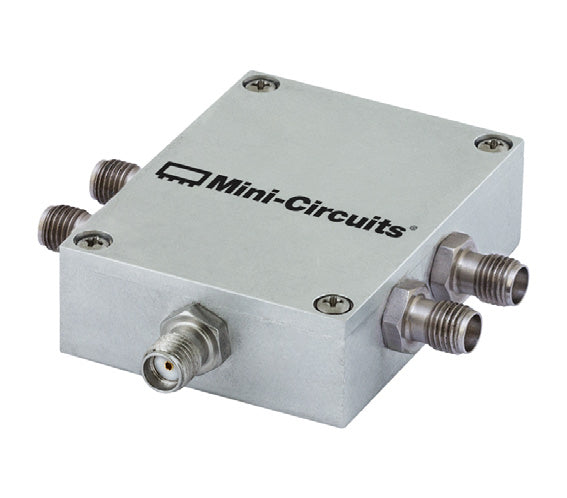

ZSWA4-63DR+ - Mini-Circuits, QV2425

Name: ZSWA4-63DR+ - Mini-Circuits, QV2425
Brand: Mini-Circuits
SKU: ZSWA4-63DR-QV2425
Price: 511.38 USD
Availability: InStock

In stock

SKU: ZSWA4-63DR-QV2425

(0)

$511.38

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

ZSWA4-63DR+

58dBm receive 6GHz SP4T 3G/4G 1MHz 6GHz 2.2dB 50Ohm mount

Available Stock: 100IC PackageActive

ManufacturerMini-Circuits

PackageIC Package

Stock100

Standard Pack-

Pricing & Ordering

Unit Price$511.3810

Basic Information

Manufacturer	Mini-Circuits
Manufacturer Part Number	ZSWA4-63DR+
IC Category	RF Integrated Circuits
Package	IC Package
Lifecycle Status	Active

Technical Attributes

RF Type	3G/4G
Topology	Absorptive
Circuit	SP4T
Frequency Range	1MHz ~ 6GHz
Isolation	35dB
Insertion Loss	2.2dB
Test Frequency	6GHz
P1dB	-
IIP3	58dBm
Features	-
Impedance	50Ohm
Voltage - Supply	2.3V ~ 3.6V
Operating Temperature	-40 degC ~ 85 degC
Mounting Type	Chassis Mount
Package / Case	-
Supplier Device Package	-

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Package: QV2425.
