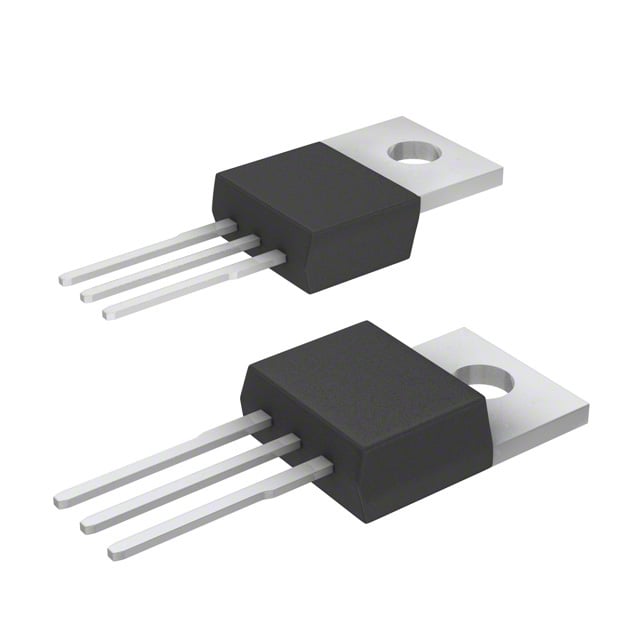

TOP224YN - Power Integrations 집적 회로 및 칩
Regular price
$2.42
귀하가 주문한 후 당사 영업팀은 최종 가격, 배송비 및 예상 배송 소요 시간에 대한 서면 확인서를 보내드립니다. 수입 관세, 세금, 중개 수수료 및 기타 목적지 요금은 고객의 책임입니다. 필요한 경우 수입신고에 필요한 제품 정보와 통관 서류를 제공해 드릴 수 있습니다. 최종 통관 및 결제는 고객의 책임입니다.
Couldn't load pickup availability
TOP224YN
5.7V Boost, Buck, Flyback, Forward 100KHz 75W 85V(AC) 5.7V 265V(AC) Yes temp 67% 700V TO-220-3 mount 8.46mm(high)
Available Stock: 700TO-220-3Check availability
ManufacturerPower Integrations
PackageTO-220-3
Stock700
Standard Pack50
Pricing & Ordering
Unit Price$2.4220
Basic Information
| Manufacturer | Power Integrations |
|---|---|
| Manufacturer Part Number | TOP224YN |
| IC Category | Integrated Circuits & Chips |
| Package | TO-220-3 |
| Lifecycle Status | Check availability |
Technical Attributes
| Output Isolation | Isolated |
|---|---|
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 67% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 75 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40 degC ~ 150 degC (TJ) |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| Mounting Type | Through Hole |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
