Allegro MicroSystems

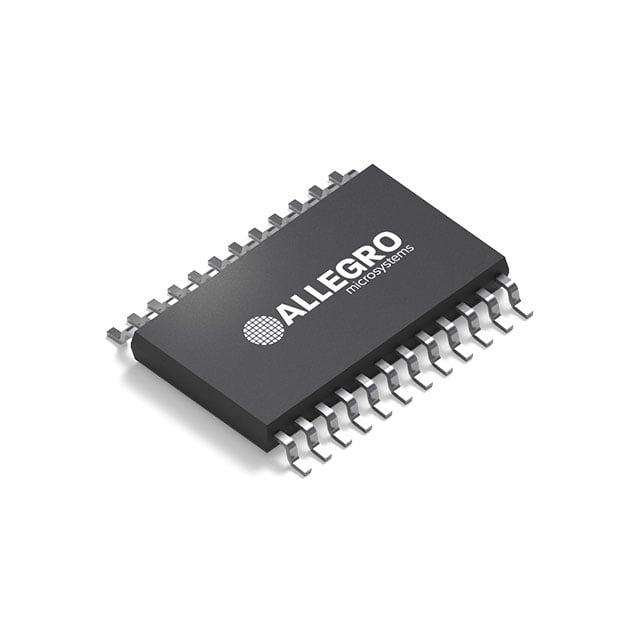

A3992SLPTR-T - Allegro MicroSystems Interface IC, TSSOP-24(EP)

Name: A3992SLPTR-T - Allegro MicroSystems Interface IC, TSSOP-24(EP)
Brand: Allegro MicroSystems
SKU: A3992SLPTR-T-TSSOP-24-EP
Price: 3.18 USD
Availability: InStock

In stock

SKU: A3992SLPTR-T-TSSOP-24-EP

(0)

$3.18

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

A3992SLPTR-T

15V~50V (4) DMOS 1.5A dualelectric 4.5V 5.5V Serial Control and Power Stage, Driver - Fully Integrated TSSOP-24(EP) surface mount, adhesive mount 7.8mm*4.4mm*1.2mm

Available Stock: 436TSSOP-24(EP)Active

ManufacturerAllegro MicroSystems

PackageTSSOP-24(EP)

Stock436

Standard Pack4000

Pricing & Ordering

Unit Price$3.1766

Basic Information

Manufacturer	Allegro MicroSystems
Manufacturer Part Number	A3992SLPTR-T
IC Category	Driver & Interface Integrated Circuits
Package	TSSOP-24(EP)
Lifecycle Status	Active

Technical Attributes

Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	Serial
Technology	DMOS
Step Resolution	1 ~ 1/64
Applications	General Purpose
Current - Output	1.5A
Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	15V ~ 50V
Operating Temperature	-20 degC ~ 150 degC (TJ)
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	24-TSSOP-EP

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
