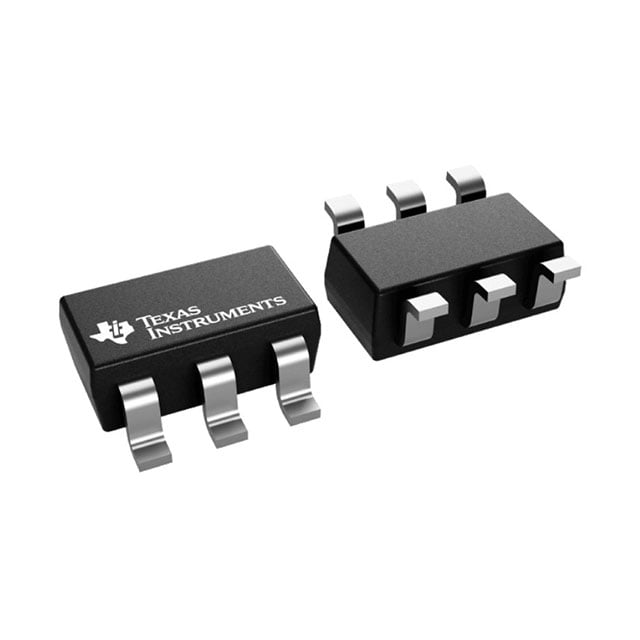

LM2776DBVR TI 6-lead SOT-23 (DBV), 2.9 x 1.6mm body, 0.95mm pitch package

TI

LM2776DBVR - Texas Instruments DC-DC Converter, SOT-23-6 (DBV)

Name: LM2776DBVR - Texas Instruments DC-DC Converter, SOT-23-6 (DBV)
Brand: TI
SKU: LM2776DBVR-SOT-23-6
Price: 0.86 USD
Availability: InStock

In stock

SKU: LM2776DBVR-SOT-23-6

(0)

$0.86

Volume Discounts

Quantity	Unit Price
1+	$0.80
10+	$0.65
30+	$0.58
100+	$0.51
500+	$0.46
1000+	$0.44

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

LM2776DBVR

Inverted 2MHz -5.5V~-2.7V 200mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

In Stock SOT-23-6 (DBV) normal

Unit Price$0.7679

In Stock

ManufacturerTI

PackageSOT-23-6 (DBV)

Stock1533

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	LM2776DBVR
Description	Inverted 2MHz -5.5V~-2.7V 200mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
IC Category	Voltage Regulators - DC DC Switching Regulators
Package	SOT-23-6 (DBV)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	3000
Available Stock	1533
Availability	In Stock
Lifecycle Status	normal

Key Specifications

Operating Temperature	-40℃~+85℃
Function	Inverted
Frequency - Switching	2MHz
Features	Adaptive switching frequency;Low-power standby;Output short-circuit protection;Overcurrent Protection
Operating Voltage	2.7V~5.5V
Output Voltage	-5.5V~-2.7V
Output Current	200mA

Technical Attributes

Energy Efficiency	90%
Quiescent Current	200uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet

Download PDF

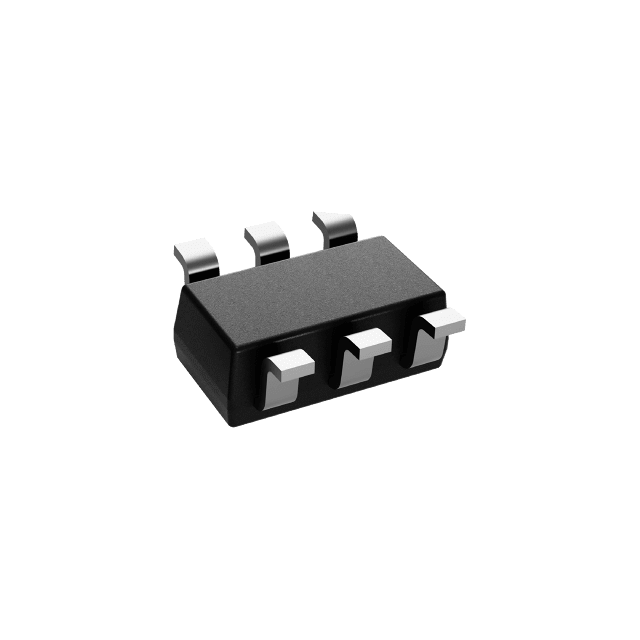

Package: SOT-23-6 (DBV); 6 pins. Verified for LM2776DBVR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
