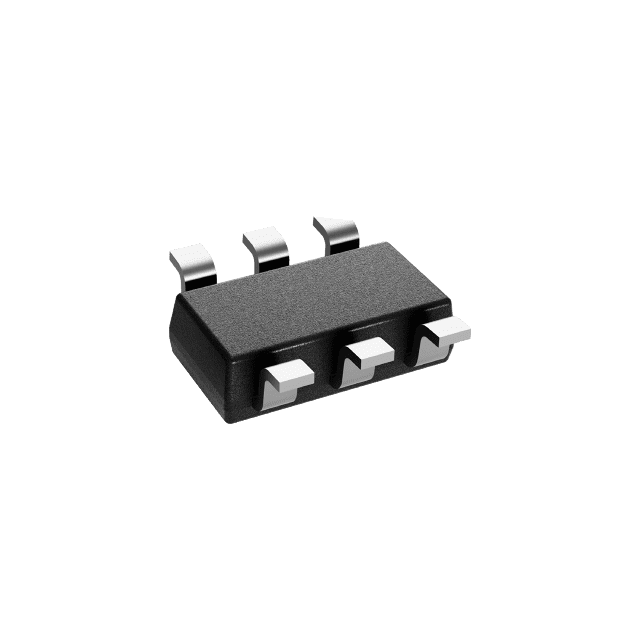

LM2842XMK-ADJL/NOPB SOT-23-THN-6 (DDC) logo-free package illustration

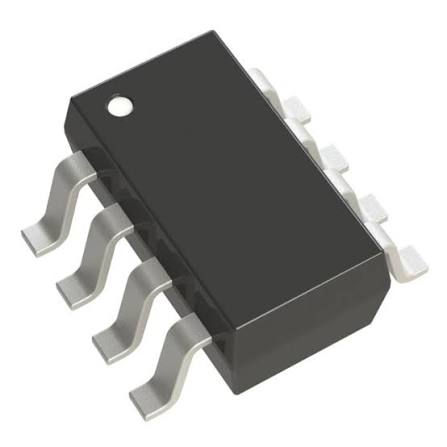

LM2842XMK-ADJL/NOPB 8-lead TSOT-23-8 package
LM2842XMK-ADJL/NOPB SOT-23-THN-6 (DDC) logo-free package illustration
LM2842XMK-ADJL/NOPB 8-lead TSOT-23-8 package
TI

LM2842XMK-ADJL/NOPB - Texas Instruments DC-DC Converter, SOT-23-THN-6 (DDC)

In stock
SKU: LM2842XMK-ADJL/NOPB-SOT-23-THN-6
(0)
$2.07
Volume Discounts
QuantityUnit Price
1+$1.94
10+$1.68
30+$1.51
100+$1.29
500+$1.22
1000+$1.18
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

LM2842XMK-ADJL/NOPB

Buck Switching Regulator IC Adjustable 0.765V~34V 1 Output 600mA TSOT-23-6

In Stock SOT-23-THN-6 (DDC) normal
Unit Price$1.8489
In Stock
ManufacturerTI
PackageSOT-23-THN-6 (DDC)
Stock5068
PackTape & Reel (TR)

Basic Information

Manufacturer TI
Manufacturer Part Number LM2842XMK-ADJL/NOPB
Description Buck Switching Regulator IC Adjustable 0.765V~34V 1 Output 600mA TSOT-23-6
IC Category Voltage Regulators - DC DC Switching Regulators
Package SOT-23-THN-6 (DDC)
Packaging Tape & Reel (TR)
Standard Pack Quantity 1000
Available Stock 5068
Availability In Stock
Lifecycle Status normal

Key Specifications

Operating Temperature -40 C~+125 C@(TJ)
Frequency-Switching 550kHz
Function Step-down type
Number of Outputs 1
Features Adjustable soft-start; Overcurrent Protection
Output Type Adjustable
Topology Buck

Technical Attributes

Voltage - Supply 4.5V~42V
Switch tube (built-in/external) Built-in
Voltage - Output 765mV~34V
Current - Output 600mA
Quiescent Current 1.35mA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Package: SOT-23-THN-6 (DDC); 6 pins. Verified for LM2842XMK-ADJL/NOPB against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
