LM5001MAX/NOPB - Texas Instruments DC-DC Converter, SOIC-8 (D)

Name: LM5001MAX/NOPB - Texas Instruments DC-DC Converter, SOIC-8 (D)
Brand: TI
SKU: LM5001MAX/NOPB-SOIC-8
Price: 4.30 USD
Availability: InStock

In stock

SKU: LM5001MAX/NOPB-SOIC-8

(0)

$4.30

Volume Discounts

Quantity	Unit Price
1+	$4.30
10+	$3.65
30+	$3.15
100+	$2.76
500+	$2.57
1000+	$2.49

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

LM5001MAX/NOPB

1.5MHz Boost Adjustable 3.1V~76V 800mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS

In Stock SOIC-8 (D) normal

Unit Price$4.3006

In Stock

ManufacturerTI

PackageSOIC-8 (D)

Stock2359

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	LM5001MAX/NOPB
Description	1.5MHz Boost Adjustable 3.1V~76V 800mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
IC Category	Voltage Regulators - DC DC Switching Regulators
Package	SOIC-8 (D)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	2500
Available Stock	2359
Availability	In Stock
Lifecycle Status	normal

Key Specifications

Operating Temperature	-40℃~+125℃@(TJ)
Frequency - Switching	1.5MHz
Function	Boost
Number of Outputs	1
Features	Cycle-by-cycle current limiting;Frequency synchronization;Built-in LDO regulator;Built-in current sense resistor;Overcurrent Protection
Output Type	Adjustable
Topology	Boost;Flyback;Forward;SEPIC

Technical Attributes

Operating Voltage	3.1V~75V
Switch tube (built-in/external)	Built-in
Output Voltage	3.1V~76V
Output Current	800mA
Quiescent Current	95uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

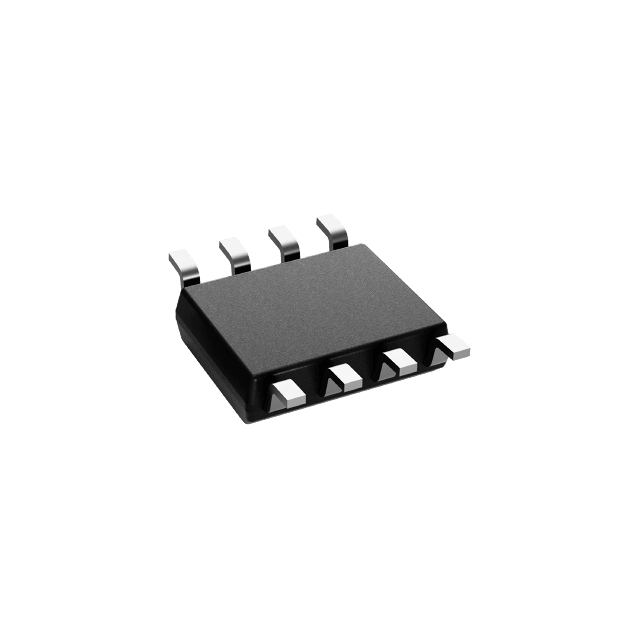

Package: SOIC-8 (D); 8 pins. Verified for LM5001MAX/NOPB against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
