Read articleSN74ALS563BN - Texas Instruments Logic IC, PDIP-20
Regular price
$7.34
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability

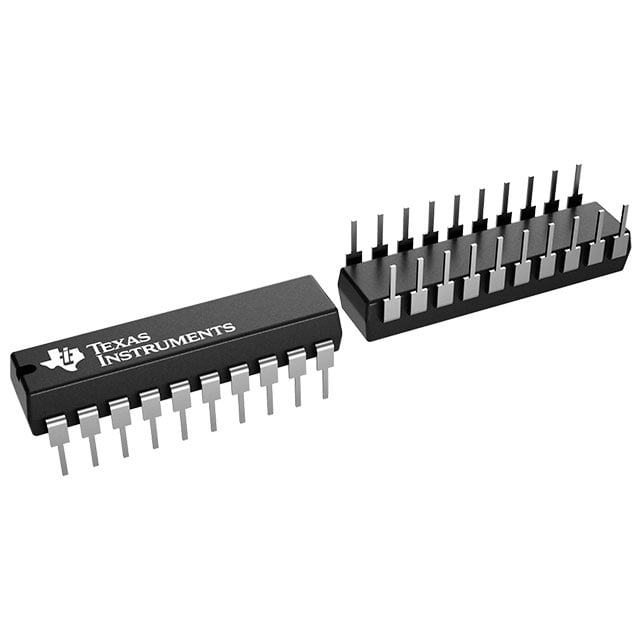

SN74ALS563BN
6ns 1 4.5V 5.5V 24mA D-Type Transparent Latch ALS 1 2.6mA PDIP-20 mount 24.33mm*6.35mm*4.57mm
Available Stock: 61968PDIP-20Active
ManufacturerTexas Instruments
PackagePDIP-20
Stock61968
Standard Pack1
Pricing & Ordering
Unit Price$7.3407
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | SN74ALS563BN |
| IC Category | Integrated Circuits & Chips |
| Package | PDIP-20 |
| Lifecycle Status | Active |
Technical Attributes
| Logic Type | D-Type Transparent Latch |
|---|---|
| Circuit | 8:8 |
| Output Type | Tri-State |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 6ns |
| Current - Output High, Low | 2.6mA, 24mA |
| Operating Temperature | 0 degC ~ 70 degC |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
