TL331LVQDBVRQ1 - Texas Instruments, SOT-23-5 (DBV)
Regular price
$0.29
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability
TL331LVQDBVRQ1
25µA 600ns 1 1.65V 5.5V 400µV 5pA
Available Stock: 32515IC PackageActive
ManufacturerTexas Instruments
PackageSOT-23-5 (DBV)
Stock32515
Standard Pack-
Pricing & Ordering
Unit Price$0.2915
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | TL331LVQDBVRQ1 |
| IC Category | Integrated Circuits & Chips |
| Package | SOT-23-5 (DBV) |
| Lifecycle Status | Active |
Technical Attributes
| Type | Standard (General Purpose) |
|---|---|
| Number of Elements | 1 |
| Output Type | Open-Collector, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 1.65V ~ 5.5V |
| Voltage - Input Offset (Max) | 2mV @ 5V |
| Current - Input Bias (Max) | 5pA @ 5V |
| Current - Output (Typ) | 100mA @ 5V |
| Current - Quiescent (Max) | 35µA |
| CMRR, PSRR (Typ) | 65dB CMRR, 80dB PSRR |
| Propagation Delay (Max) | 600ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -40 degC ~ 125 degC |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | SOT-23-5 (DBV) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF

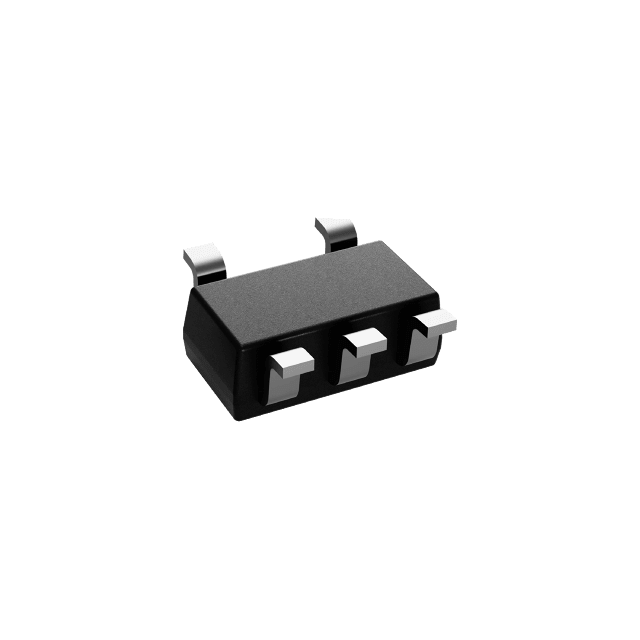

Package: SOT-23-5 (DBV); 5 pins. Verified for TL331LVQDBVRQ1 against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
