Read articleTLC1543CDW - Texas Instruments, SOIC-20
Regular price
$14.11
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability

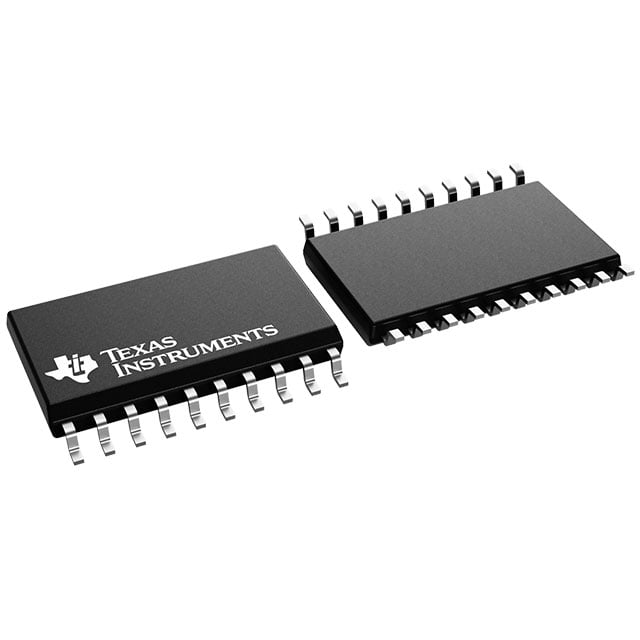

TLC1543CDW
5V 38Ksps 10bit 11 10 SPI Single-Ended 5V SAR SOIC-20 surface mount 12.8mm*7.52mm*2.35mm
Available Stock: 9835SOIC-20Active
ManufacturerTexas Instruments
PackageSOIC-20
Stock9835
Standard Pack-
Pricing & Ordering
Unit Price$14.1063
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | TLC1543CDW |
| IC Category | RF Integrated Circuits |
| Package | SOIC-20 |
| Lifecycle Status | Active |
Technical Attributes
| Number of Bits | 10 |
|---|---|
| Sampling Rate (Per Second) | 38k |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Selectable Address |
| Operating Temperature | 0 degC ~ 70 degC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
