Read articleTLV2543IDBR - Texas Instruments, SSOP-20
Regular price
$27.04
After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.
Couldn't load pickup availability

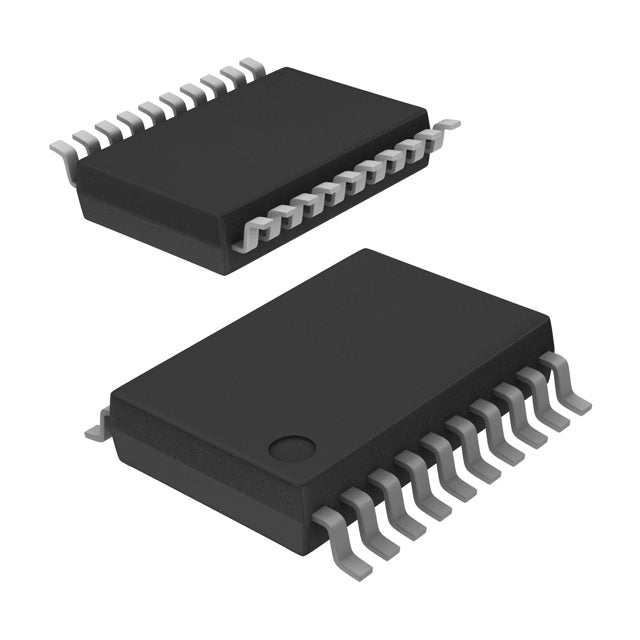

TLV2543IDBR
3V~3.6V 66Ksps 12bit 11 12 SPI Single-Ended 3V~3.6V SAR SSOP-20 surface mount, adhesive mount 7.2mm*5.3mm*1.95mm
Available Stock: 2SSOP-20Active
ManufacturerTexas Instruments
PackageSSOP-20
Stock2
Standard Pack2000
Pricing & Ordering
Unit Price$27.0413
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | TLV2543IDBR |
| IC Category | RF Integrated Circuits |
| Package | SSOP-20 |
| Lifecycle Status | Active |
Technical Attributes
| Number of Bits | 12 |
|---|---|
| Sampling Rate (Per Second) | 66k |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | - |
| Operating Temperature | -40 degC ~ 85 degC |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
