TPS61170DRVR - Texas Instruments DC-DC Converter, WSON-6 (DRV)

Name: TPS61170DRVR - Texas Instruments DC-DC Converter, WSON-6 (DRV)
Brand: TI
SKU: TPS61170DRVR-WSON-6
Price: 1.10 USD
Availability: InStock

In stock

SKU: TPS61170DRVR-WSON-6

(0)

$1.10

Volume Discounts

Quantity	Unit Price
1+	$0.98
10+	$0.82
30+	$0.73
100+	$0.65
500+	$0.56
1000+	$0.54

After you place an order, our sales team will send written confirmation of the final price, shipping charges, and estimated delivery lead time. Import duties, taxes, brokerage fees, and other destination charges are the customer's responsibility. When needed, we can assist with available product information and customs documents for import declaration; final customs clearance and payment remain the customer's responsibility.

Integrated Circuit

TPS61170DRVR

1.2MHz Boost Adjustable 3V~38V 960mA WSON-6(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

In Stock WSON-6 (DRV) normal

Unit Price$0.9757

In Stock

ManufacturerTI

PackageWSON-6 (DRV)

Stock5075

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	TPS61170DRVR
Description	1.2MHz Boost Adjustable 3V~38V 960mA WSON-6(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
IC Category	Voltage Regulators - DC DC Switching Regulators
Package	WSON-6 (DRV)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	3000
Available Stock	5075
Availability	In Stock
Lifecycle Status	normal

Key Specifications

Operating Temperature	-40℃~+85℃@(TA)
Frequency - Switching	1.2MHz
Function	Boost
Number of Outputs	1
Features	Cycle-by-cycle current limiting;External compensation;Dynamic voltage scaling
Output Type	Adjustable
Topology	Boost

Technical Attributes

Operating Voltage	3V~18V
Switch tube (built-in/external)	Built-in
Output Voltage	3V~38V
Output Current	960mA
Quiescent Current	2.3mA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet

Download PDF

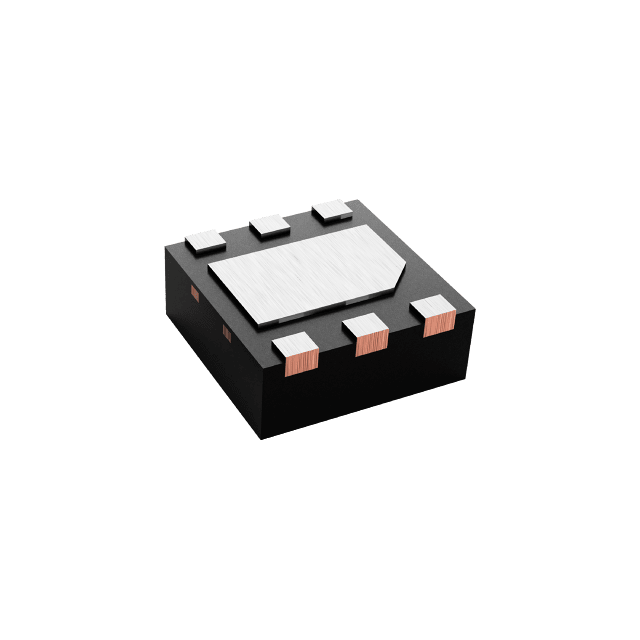

Package: WSON-6 (DRV); 6 pins. Verified for TPS61170DRVR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
