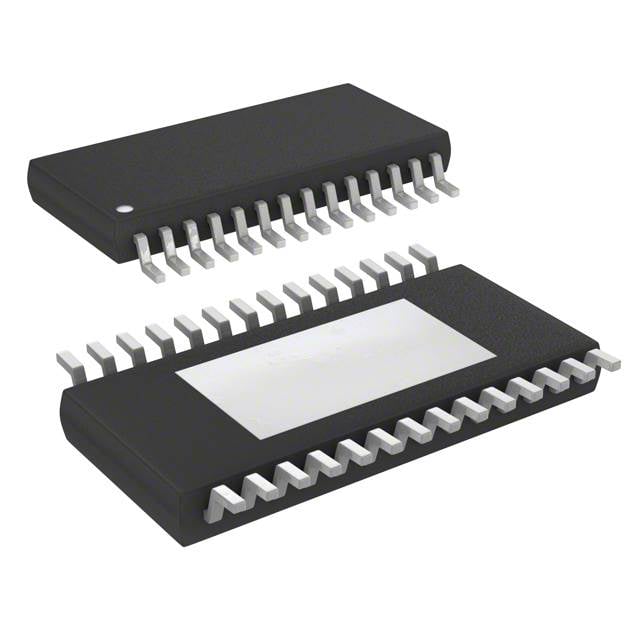

DRV8424PWPR - Texas Instruments Driver- og interfaceintegrerede kredsløb

Name: DRV8424PWPR - Texas Instruments Driver- og interfaceintegrerede kredsløb
Brand: Texas Instruments
SKU: DRV8424PWPR-HTSSOP-28
Price: 2.69 USD
Availability: InStock

In stock

SKU: DRV8424PWPR-HTSSOP-28

(0)

$2.69

Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

DRV8424PWPR

4.5V~33V Power MOSFET dualelectric 0V 5.5V Direction, Step Control and Power Stage, Driver - Fully Integrated HTSSOP-28 surface mount, adhesive mount 9.7mm()*4.4mm(wide)

Available Stock: 100HTSSOP-28Active

ManufacturerTexas Instruments

PackageHTSSOP-28

Stock100

Standard Pack2500

Pricing & Ordering

Unit Price$2.6885

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	DRV8424PWPR
IC Category	Driver & Interface Integrated Circuits
Package	HTSSOP-28
Lifecycle Status	Active

Technical Attributes

Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	Step/Direction
Technology	Power MOSFET
Step Resolution	1 ~ 1/256
Applications	Consumer, Industrial
Current - Output	2.5A
Voltage - Supply	0V ~ 5.5V
Voltage - Load	4.5V ~ 33V
Operating Temperature	-40 degC ~ 125 degC (TA)
Mounting Type	Surface Mount
Package / Case	28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package	28-HTSSOP
