L7815CD2T-TR - STMicroelectronics Spændingsregulatorer – lineære low-dropout-regulatorer (LDO)
Regular price
$0.75
Mængderabatter
| Quantity | Unit Price |
|---|---|
| 1+ | $0.75 |
| 10+ | $0.62 |
| 30+ | $0.56 |
| 100+ | $0.50 |
| 500+ | $0.39 |
| 1000+ | $0.37 |
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.
Couldn't load pickup availability
Integrated Circuit
L7815CD2T-TR
IC REG LINEAR 15V 1.5A D2PAK
In Stock

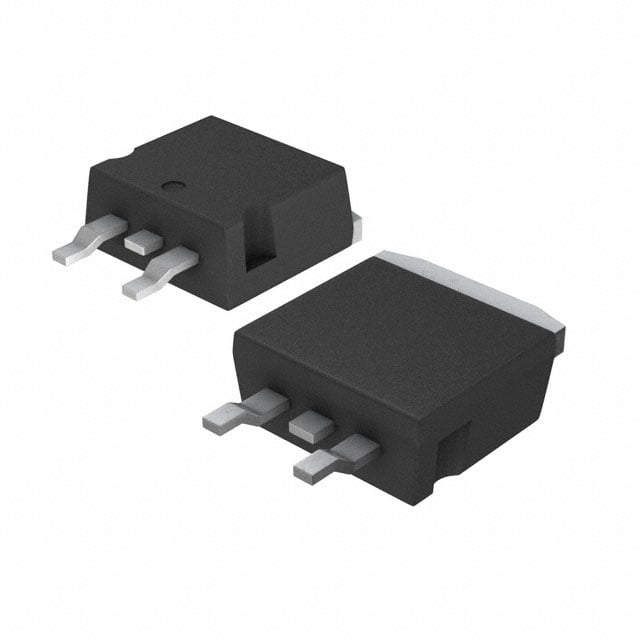

D2PAK
{'Id': 0, 'Status': 'Active'}
ManufacturerST
PackageD2PAK
Stock17136
PackTape & Reel (TR)
Basic Information
| Manufacturer | ST |
|---|---|
| Manufacturer Part Number | L7815CD2T-TR |
| Description | IC REG LINEAR 15V 1.5A D2PAK |
| IC Category | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
| Package | D2PAK |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 1000 |
| Available Stock | 17136 |
| Lifecycle Status | {'Id': 0, 'Status': 'Active'} |
Key Specifications
| Output Configuration | Positive |
|---|---|
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
Technical Attributes
| Current - Output | 1.5A |
|---|---|
| Current - Quiescent (Iq) | 8 mA |
| PSRR | 54dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
