LM27761DSGR - Texas Instruments Spændingsregulatorer og strømstyrings-IC'er
Regular price
$1.17
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.
Couldn't load pickup availability
LM27761DSGR

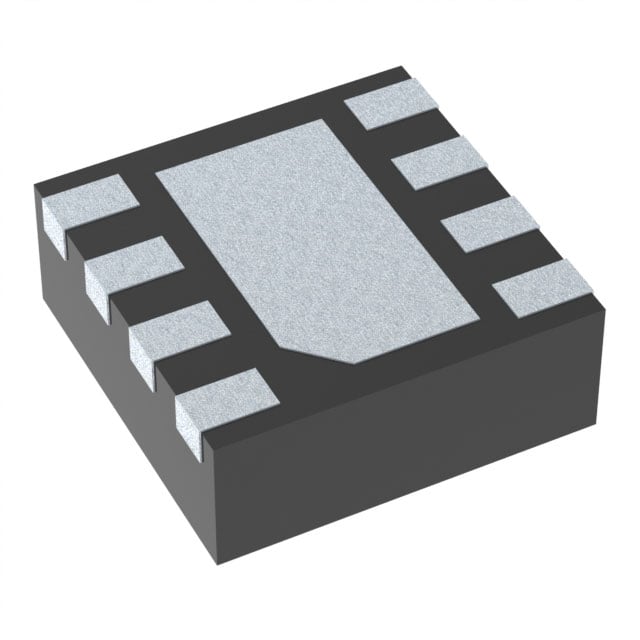

Texas Instruments chip, 250mA maxlargeinputoutput, surface mount, 8-pin
Available Stock: 9169WSON-8Active
ManufacturerTexas Instruments
PackageWSON-8
Stock9169
Standard Pack3000
Pricing & Ordering
Unit Price$1.1699
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | LM27761DSGR |
| IC Category | Voltage Regulators & Power Management ICs |
| Package | WSON-8 |
| Lifecycle Status | Active |
Technical Attributes
| Function | Step-Up/Step-Down |
|---|---|
| Output Configuration | Negative |
| Topology | Charge Pump |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -1.5V |
| Voltage - Output (Max) | -5V |
| Current - Output | 250mA |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40 degC ~ 85 degC (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet
Download PDFMANUFACTURER ACCESS
