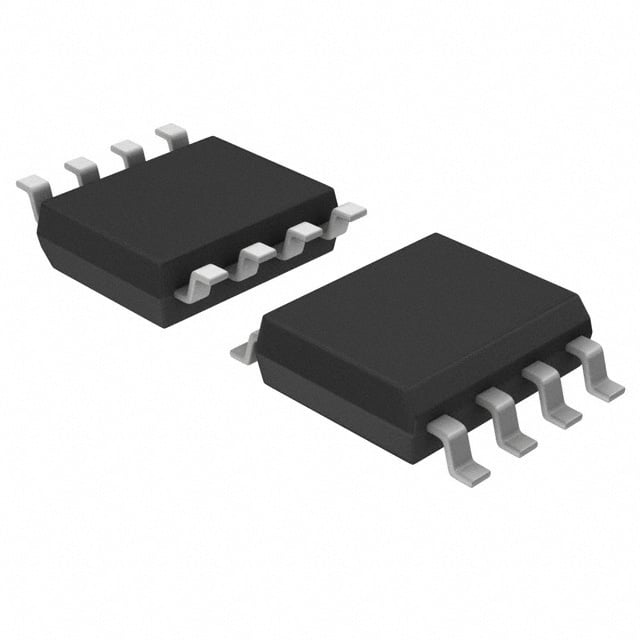

SN74LVC2G00DCTR SM-8 package
SN74LVC2G00DCTR SM-8 package
Texas Instruments

SN74LVC2G00DCTR - Texas Instruments Logikgate- og dekoder-IC'er

In stock
SKU: SN74LVC2G00DCTR-SM-8
(0)
$0.53
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

SN74LVC2G00DCTR

3.3ns@ 5V,50pF 1 2 2 2 1.65V 5.5V 32mA NAND Gate LVC 32mA SM-8 surface mount 1.3mm(high)

Available Stock: 76SM-8Active
ManufacturerTexas Instruments
PackageSM-8
Stock76
Standard Pack3000

Pricing & Ordering

Unit Price$0.5295

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number SN74LVC2G00DCTR
IC Category Logic Gate & Decoder ICs
Package SM-8
Lifecycle Status Active

Technical Attributes

Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Features -
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 10 µA
Current - Output High, Low 32mA, 32mA
Input Logic Level - Low 0.58V ~ 1.65V
Input Logic Level - High 1.07V ~ 3.85V
Max Propagation Delay @ V, Max CL 3.3ns @ 5V, 50pF
Operating Temperature -40 degC ~ 125 degC
Mounting Type Surface Mount
Supplier Device Package SM8
Package / Case 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
