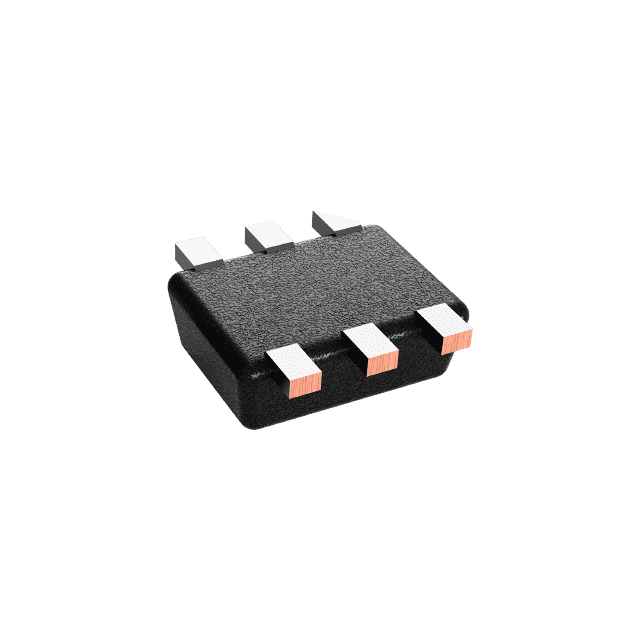

TPS562242DRLR SOT-5X3-6 (DRL) logo-free package illustration
TPS562242DRLR SOT-5X3-6 (DRL) logo-free package illustration
TI

TPS562242DRLR - Texas Instruments Spændingsregulatorer – DC/DC-switchingregulatorer

In stock
SKU: TPS562242DRLR-SOT-5X3-6
(0)
$0.16
Mængderabatter
QuantityUnit Price
5+$0.16
50+$0.13
150+$0.11
500+$0.09
2500+$0.08
4000+$0.08
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

Integrated Circuit

TPS562242DRLR

Buck Switching Regulator IC Adjustable 0.8V~10V 1 Output 2A SOT-563-6

In Stock SOT-5X3-6 (DRL) normal
Unit Price$0.161
In Stock
ManufacturerTI
PackageSOT-5X3-6 (DRL)
Stock39555
PackTape & Reel (TR)

Basic Information

Manufacturer TI
Manufacturer Part Number TPS562242DRLR
Description Buck Switching Regulator IC Adjustable 0.8V~10V 1 Output 2A SOT-563-6
IC Category Voltage Regulators - DC DC Switching Regulators
Package SOT-5X3-6 (DRL)
Packaging Tape & Reel (TR)
Standard Pack Quantity 4000
Available Stock 39555
Availability In Stock
Lifecycle Status normal

Key Specifications

Operating Temperature -40 C~+125 C@(TJ)
Function Step-down type
Frequency-Switching 1.4MHz
Number of Outputs 1
Features Cycle-by-cycle current limiting; Hiccup current limiting; Light load efficient mode; Overcurrent Protection
Output Type Adjustable
Topology Buck

Technical Attributes

Voltage - Supply 3V~17V
Switch tube (built-in/external) Built-in
Voltage - Output 800mV~10V
Current - Output 2A
Quiescent Current 100uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Package: SOT-5X3-6 (DRL); 6 pins. Verified for TPS562242DRLR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
