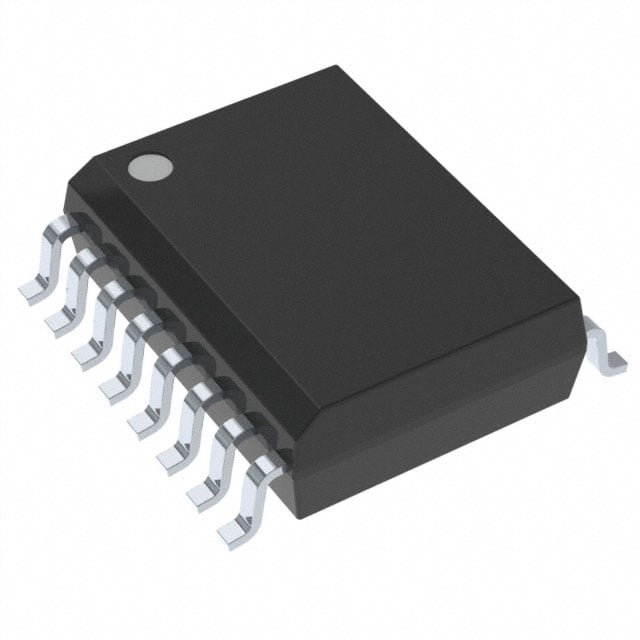

UCC21750QDWRQ1 SOIC-16 package

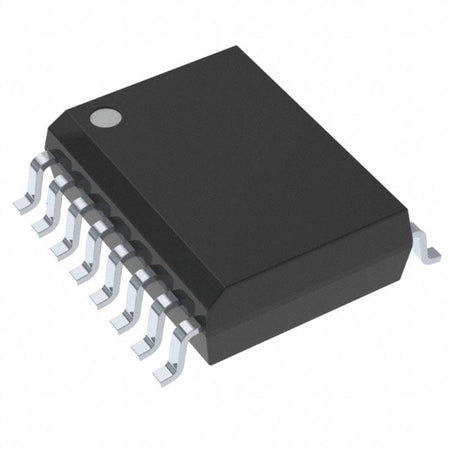

UCC21750QDWRQ1 SOIC-16 package
Texas Instruments

UCC21750QDWRQ1 - Texas Instruments RF-integrerede kredsløb

In stock
SKU: UCC21750QDWRQ1-SOIC-16
(0)
$4.20
Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

UCC21750QDWRQ1

33ns 1 3V 130ns 33V 0.8V/2V powerinput IGBT 27ns SOIC-16 surface mount 10.3mm()*7.5mm(wide)

Available Stock: 858SOIC-16Active
ManufacturerTexas Instruments
PackageSOIC-16
Stock858
Standard Pack2000

Pricing & Ordering

Unit Price$4.1955

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number UCC21750QDWRQ1
IC Category RF Integrated Circuits
Package SOIC-16
Lifecycle Status Active

Technical Attributes

Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 150V/ns
Propagation Delay tpLH / tpHL (Max) 130ns, 130ns
Pulse Width Distortion (Max) 30ns
Rise / Fall Time (Typ) 33ns, 27ns
Current - Output High, Low -
Current - Peak Output 10A
Voltage - Forward (Vf) (Typ) -
Voltage - Output Supply 13V ~ 33V
Grade Automotive
Qualification AEC-Q100
Operating Temperature -40 degC ~ 125 degC
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, TUV, UL, VDE

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
