UCC27211AQDDARQ1 - Texas Instruments RF-integrerede kredsløb

Name: UCC27211AQDDARQ1 - Texas Instruments RF-integrerede kredsløb
Brand: Texas Instruments
SKU: UCC27211AQDDARQ1-HSOIC-8
Price: 1.53 USD
Availability: InStock

In stock

SKU: UCC27211AQDDARQ1-HSOIC-8

(0)

$1.53

Når du har afgivet en ordre, sender vores salgsteam en skriftlig bekræftelse på den endelige pris, forsendelsesomkostninger og forventet leveringstid. Importafgifter, skatter, mæglergebyrer og andre destinationsafgifter er kundens ansvar. Når det er nødvendigt, kan vi hjælpe med tilgængelig produktinformation og tolddokumenter til importangivelse; endelig toldbehandling og betaling forbliver kundens ansvar.

UCC27211AQDDARQ1

7.2ns 2 8V 42ns 17V 1.2V, 2.55V Non-Inverting MOSFET, N 5.5ns 3.7 A(source), 4.5 A() HSOIC-8 (DDA) surface mount, adhesive mount 1.7mm(high)

Available Stock: 343HSOIC-8 (DDA)Active

ManufacturerTexas Instruments

PackageHSOIC-8 (DDA)

Stock343

Standard Pack2500

Pricing & Ordering

Unit Price$1.5257

Basic Information

Manufacturer	Texas Instruments
Manufacturer Part Number	UCC27211AQDDARQ1
IC Category	RF Integrated Circuits
Package	HSOIC-8 (DDA)
Lifecycle Status	Active

Technical Attributes

Programmable	Not Verified
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	MOSFET (N-Channel)
Voltage - Supply	8V ~ 17V
Logic Voltage - VIL, VIH	1.2V, 2.55V
Current - Peak Output (Source, Sink)	4A, 4A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	120 V
Rise / Fall Time (Typ)	7.2ns, 5.5ns
Operating Temperature	-40 degC ~ 140 degC (TJ)
Grade	Automotive
Qualification	AEC-Q100
Mounting Type	Surface Mount
Package / Case	HSOIC-8 (DDA)
Supplier Device Package	8-SO PowerPad

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF

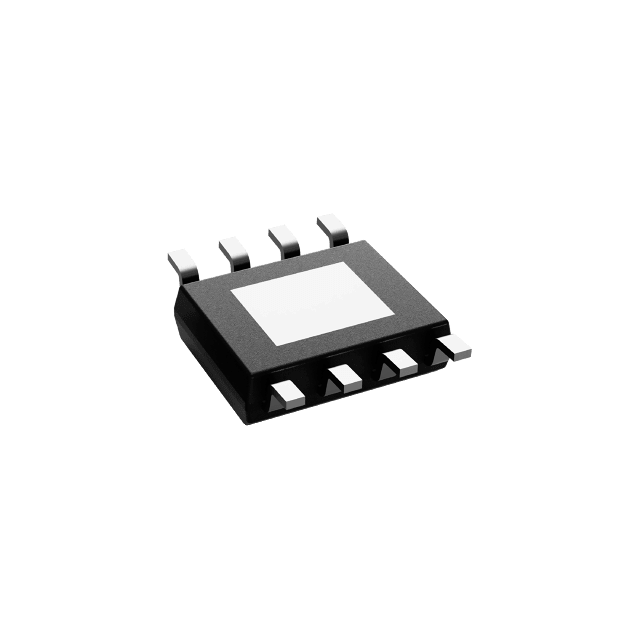

Package: HSOIC-8 (DDA); 8 pins. Verified for UCC27211AQDDARQ1 against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
