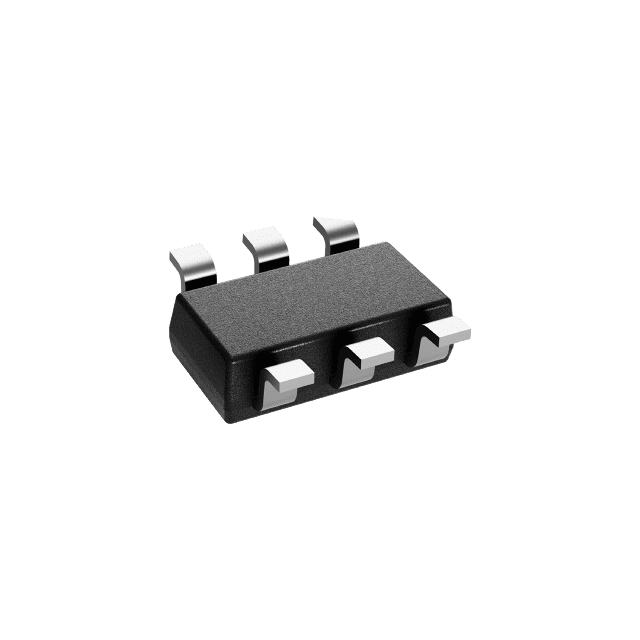

TPS22950CQDDCRQ1 SOT-23-THN-6 (DDC) logo-free package illustration
TPS22950CQDDCRQ1 SOT-23-THN-6 (DDC) logo-free package illustration
Texas Instruments

TPS22950CQDDCRQ1 - Texas Instruments Spänningsregulatorer och strömhanteringskretsar

In stock
SKU: TPS22950CQDDCRQ1-SOT-23-THN-6
(0)
$0.98
När du har lagt en beställning kommer vårt säljteam att skicka en skriftlig bekräftelse på det slutliga priset, fraktkostnader och beräknad leveranstid. Importtullar, skatter, mäklaravgifter och andra destinationsavgifter är kundens ansvar. Vid behov kan vi bistå med tillgänglig produktinformation och tulldokument för importdeklaration; slutlig tullklarering och betalning förblir kundens ansvar.

TPS22950CQDDCRQ1

40µA 0V 1.8V 5.5V 5.5V 2.9mm()*2.8mm(wide)

Available Stock: 374IC PackageActive
ManufacturerTexas Instruments
PackageSOT-23-THN-6 (DDC)
Stock374
Standard Pack3000

Pricing & Ordering

Unit Price$0.9796

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number TPS22950CQDDCRQ1
IC Category Voltage Regulators & Power Management ICs
Package SOT-23-THN-6 (DDC)
Lifecycle Status Active

Technical Attributes

Switch Type General Purpose
Number of Outputs 1
Ratio - Input:Output 1:1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 0V ~ 5.5V
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Current - Output (Max) 2.7A
Rds On (Typ) 34mOhm
Input Type Non-Inverting
Features Load Discharge, Status Flag
Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit
Operating Temperature -40 degC ~ 125 degC (TA)
Grade Automotive
Qualification AEC-Q100
Mounting Type Surface Mount
Supplier Device Package SOT-23-THIN
Package / Case SOT-23-THN-6 (DDC)

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF

Package: SOT-23-THN-6 (DDC); 6 pins. Verified for TPS22950CQDDCRQ1 against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
