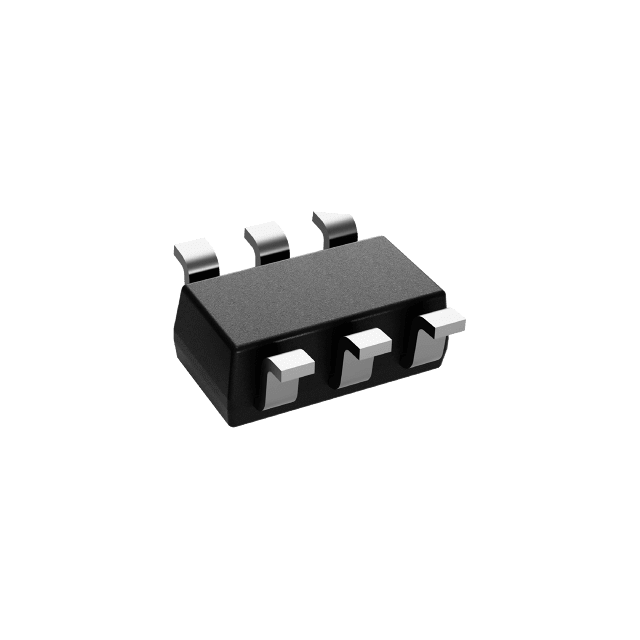

TPS560430YFDBVR SOT-23-6 (DBV) logo-free package illustration

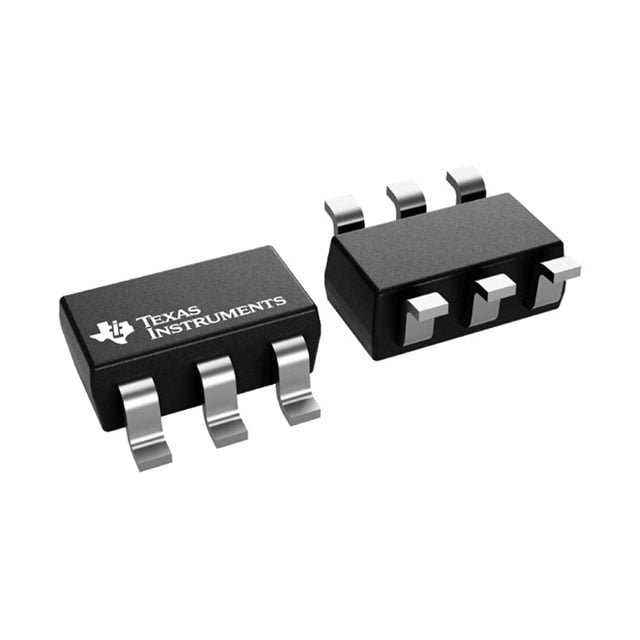

TPS560430YFDBVR TI 6-lead SOT-23 (DBV), 2.9 x 1.6mm body, 0.95mm pitch package
TPS560430YFDBVR SOT-23-6 (DBV) logo-free package illustration
TPS560430YFDBVR TI 6-lead SOT-23 (DBV), 2.9 x 1.6mm body, 0.95mm pitch package
TI

TPS560430YFDBVR - Texas Instruments Spänningsregulatorer – DC/DC-switchregulatorer

In stock
SKU: TPS560430YFDBVR-SOT-23-6
(0)
$1.42
Volymrabatter
QuantityUnit Price
1+$1.43
10+$1.19
30+$1.06
100+$0.91
500+$0.84
1000+$0.81
När du har lagt en beställning kommer vårt säljteam att skicka en skriftlig bekräftelse på det slutliga priset, fraktkostnader och beräknad leveranstid. Importtullar, skatter, mäklaravgifter och andra destinationsavgifter är kundens ansvar. Vid behov kan vi bistå med tillgänglig produktinformation och tulldokument för importdeklaration; slutlig tullklarering och betalning förblir kundens ansvar.

Integrated Circuit

TPS560430YFDBVR

Buck Switching Regulator IC Adjustable 1V~34.2V 1 Output 600mA SOT-23-6

In Stock SOT-23-6 (DBV) normal
Unit Price$1.4335
In Stock
ManufacturerTI
PackageSOT-23-6 (DBV)
Stock9175
PackTape & Reel (TR)

Basic Information

Manufacturer TI
Manufacturer Part Number TPS560430YFDBVR
Description Buck Switching Regulator IC Adjustable 1V~34.2V 1 Output 600mA SOT-23-6
IC Category Voltage Regulators - DC DC Switching Regulators
Package SOT-23-6 (DBV)
Packaging Tape & Reel (TR)
Standard Pack Quantity 3000
Available Stock 9175
Availability In Stock
Lifecycle Status normal

Key Specifications

Operating Temperature -40 C~+125 C@(TJ)
Frequency-Switching 2.1MHz
Function Step-down type
Number of Outputs 1
Features Cycle-by-cycle current limiting; Hiccup current limiting; Overcurrent Protection; Light load efficient mode
Output Type Adjustable
Topology Buck

Technical Attributes

Voltage - Supply 4V~36V
Switch tube (built-in/external) Built-in
Current - Output 600mA
Voltage - Output 1V~34.2V
Quiescent Current 80uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Package: SOT-23-6 (DBV); 6 pins. Verified for TPS560430YFDBVR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
