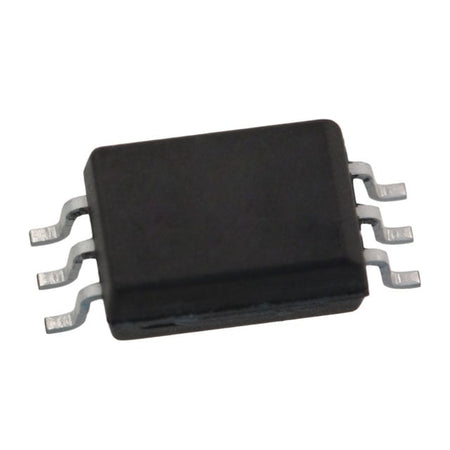

ACPL-W314-500E SO-6 package

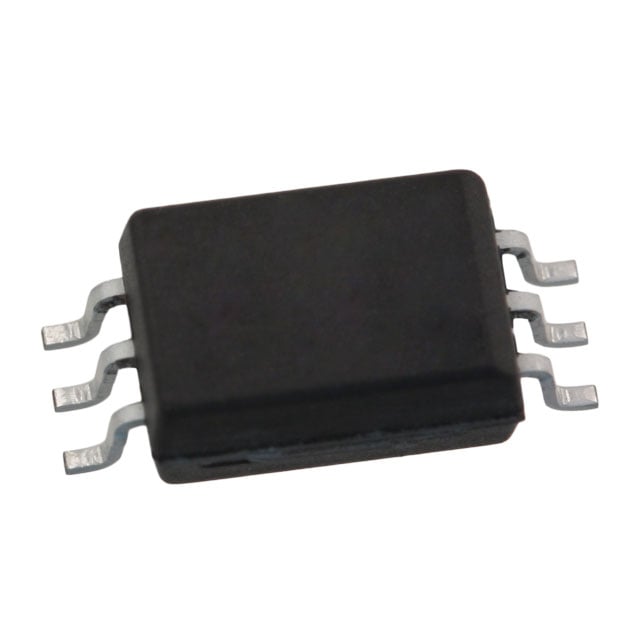

ACPL-W314-500E SO-6 package
BROADCOM

ACPL-W314-500E - BROADCOM Circuits intégrés RF

In stock
SKU: ACPL-W314-500E-SO-6
(0)
$0.85
Après avoir passé une commande, notre équipe commerciale vous enverra une confirmation écrite du prix final, des frais d'expédition et du délai de livraison estimé. Les droits d'importation, taxes, frais de courtage et autres frais de destination sont à la charge du client. En cas de besoin, nous pouvons vous aider avec les informations disponibles sur les produits et les documents douaniers pour la déclaration d'importation ; Le dédouanement final et le paiement restent à la charge du client.

ACPL-W314-500E

700ns 10V 700ns, 700ns 30V 0.8V/2V powerinput IGBT 700ns 600mA, 600mA SO-6 surface mount, adhesive mount 4.58mm*6.81mm*3.18mm

Available Stock: 658SO-6Active
ManufacturerBROADCOM
PackageSO-6
Stock658
Standard Pack1000

Pricing & Ordering

Unit Price$0.8541

Basic Information

Manufacturer BROADCOM
Manufacturer Part Number ACPL-W314-500E
IC Category RF Integrated Circuits
Package SO-6
Lifecycle Status Active

Technical Attributes

Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Propagation Delay tpLH / tpHL (Max) 700ns, 700ns
Pulse Width Distortion (Max) -
Rise / Fall Time (Typ) 50ns, 50ns
Current - Output High, Low 400mA, 400mA
Current - Peak Output 600mA
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 10V ~ 30V
Grade -
Qualification -
Operating Temperature -40 degC ~ 100 degC
Mounting Type Surface Mount
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SO
Approval Agency CSA, UR

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
