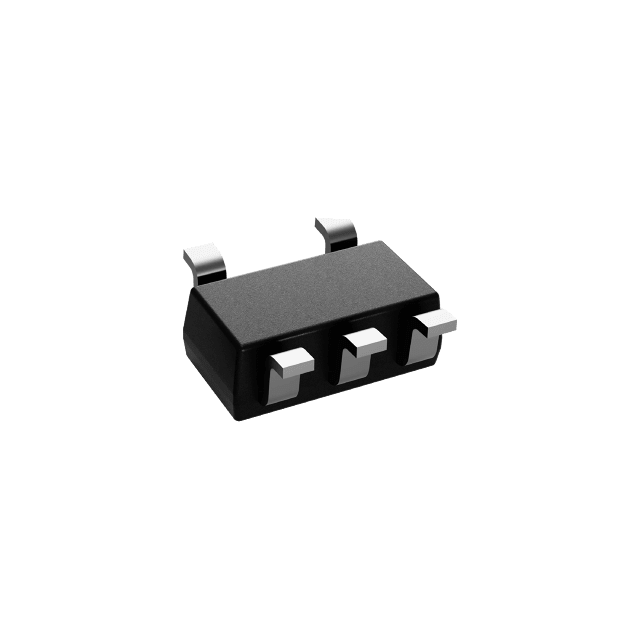

TPS560200DBVR SOT-23-5 (DBV) logo-free package illustration
TPS560200DBVR SOT-23-5 (DBV) logo-free package illustration
TI

TPS560200DBVR - Texas Instruments Régulateurs de tension – régulateurs à découpage DC/DC

In stock
SKU: TPS560200DBVR-SOT-23-5
(0)
$0.59
Remises sur volume
QuantityUnit Price
1+$0.58
10+$0.47
30+$0.41
100+$0.35
500+$0.32
1000+$0.30
Après avoir passé une commande, notre équipe commerciale vous enverra une confirmation écrite du prix final, des frais d'expédition et du délai de livraison estimé. Les droits d'importation, taxes, frais de courtage et autres frais de destination sont à la charge du client. En cas de besoin, nous pouvons vous aider avec les informations disponibles sur les produits et les documents douaniers pour la déclaration d'importation ; Le dédouanement final et le paiement restent à la charge du client.

Integrated Circuit

TPS560200DBVR

Buck Switching Regulator IC Adjustable 0.8V~6.5V 1 Output 500mA SOT-23-5

In Stock SOT-23-5 (DBV) normal
Unit Price$0.5841
In Stock
ManufacturerTI
PackageSOT-23-5 (DBV)
Stock1068
PackTape & Reel (TR)

Basic Information

Manufacturer TI
Manufacturer Part Number TPS560200DBVR
Description Buck Switching Regulator IC Adjustable 0.8V~6.5V 1 Output 500mA SOT-23-5
IC Category Voltage Regulators - DC DC Switching Regulators
Package SOT-23-5 (DBV)
Packaging Tape & Reel (TR)
Standard Pack Quantity 3000
Available Stock 1068
Availability In Stock
Lifecycle Status normal

Key Specifications

Operating Temperature -40 C~+125 C@(TJ)
Frequency-Switching 600kHz
Function Step-down type
Number of Outputs 1
Features Cycle-by-cycle current limiting; Hiccup current limiting; Light load efficient mode; Overcurrent Protection
Output Type Adjustable
Topology Buck

Technical Attributes

Voltage - Supply 4.5V~17V
Switch tube (built-in/external) Built-in
Voltage - Output 800mV~6.5V
Current - Output 500mA
Quiescent Current 60uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Package: SOT-23-5 (DBV); 5 pins. Verified for TPS560200DBVR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
