TPS563252DRLR - Texas Instruments Régulateurs de tension – régulateurs à découpage DC/DC

Name: TPS563252DRLR - Texas Instruments Régulateurs de tension – régulateurs à découpage DC/DC
Brand: TI
SKU: TPS563252DRLR-SOT-5X3-6
Price: 0.22 USD
Availability: InStock

In stock

SKU: TPS563252DRLR-SOT-5X3-6

(0)

$0.22

Remises sur volume

Quantity	Unit Price
5+	$0.21
50+	$0.16
150+	$0.14
500+	$0.12
2500+	$0.11
4000+	$0.10

Après avoir passé une commande, notre équipe commerciale vous enverra une confirmation écrite du prix final, des frais d'expédition et du délai de livraison estimé. Les droits d'importation, taxes, frais de courtage et autres frais de destination sont à la charge du client. En cas de besoin, nous pouvons vous aider avec les informations disponibles sur les produits et les documents douaniers pour la déclaration d'importation ; Le dédouanement final et le paiement restent à la charge du client.

Integrated Circuit

TPS563252DRLR

Buck Switching Regulator IC Adjustable 0.6V~10V 1 Output 3A SOT-6(5x3)

In Stock SOT-5X3-6 (DRL) normal

Unit Price$0.2079

In Stock

ManufacturerTI

PackageSOT-5X3-6 (DRL)

Stock6850

PackTape & Reel (TR)

Basic Information

Manufacturer	TI
Manufacturer Part Number	TPS563252DRLR
Description	Buck Switching Regulator IC Adjustable 0.6V~10V 1 Output 3A SOT-6(5x3)
IC Category	Voltage Regulators - DC DC Switching Regulators
Package	SOT-5X3-6 (DRL)
Packaging	Tape & Reel (TR)
Standard Pack Quantity	4000
Available Stock	6850
Availability	In Stock
Lifecycle Status	normal

Key Specifications

Operating Temperature	-40 C~+125 C@(TJ)
Function	Step-down type
Frequency-Switching	1.2MHz
Number of Outputs	1
Features	Cycle-by-cycle current limiting; Hiccup current limiting; Light load efficient mode; Operating status indication; Overcurrent Protection
Output Type	Adjustable
Topology	Buck

Technical Attributes

Voltage - Supply	3V~17V
Switch tube (built-in/external)	Built-in
Voltage - Output	600mV~10V
Current - Output	3A
Quiescent Current	100uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet

Download PDF

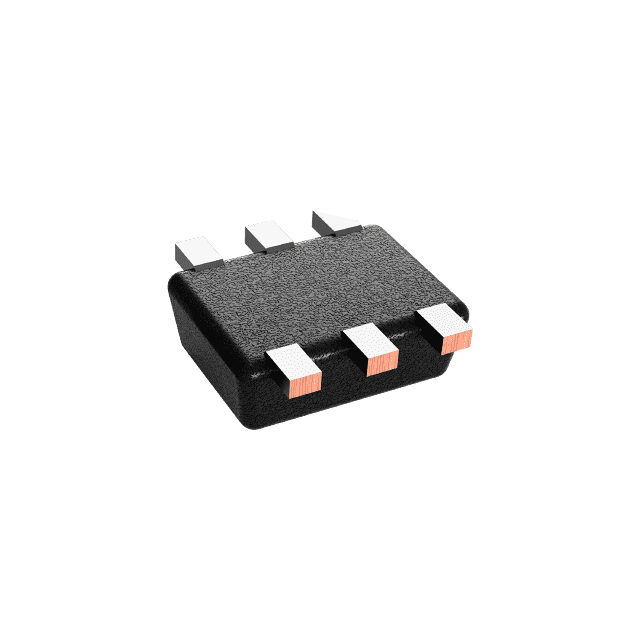

Package: SOT-5X3-6 (DRL); 6 pins. Verified for TPS563252DRLR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.
