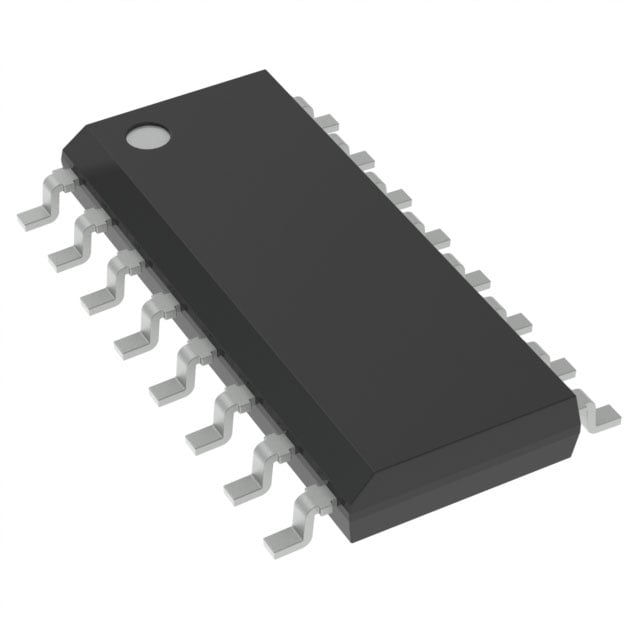

VIPER26LDTR SO-16 package
VIPER26LDTR SO-16 package
STMicroelectronics

VIPER26LDTR - STMicroelectronics Circuits intégrés RF

In stock
SKU: VIPER26LDTR-SO-16
(0)
$0.38
Après avoir passé une commande, notre équipe commerciale vous enverra une confirmation écrite du prix final, des frais d'expédition et du délai de livraison estimé. Les droits d'importation, taxes, frais de courtage et autres frais de destination sont à la charge du client. En cas de besoin, nous pouvons vous aider avec les informations disponibles sur les produits et les documents douaniers pour la déclaration d'importation ; Le dédouanement final et le paiement restent à la charge du client.

VIPER26LDTR

11.5V~23.5V Flyback 60KHz 20W 1.5A 6V 11.5V 800V 23.5V Yes temp 70% 800V SO-16 surface mount, adhesive mount 1.75mm(high)

Available Stock: 48SO-16Active
ManufacturerSTMicroelectronics
PackageSO-16
Stock48
Standard Pack2500

Pricing & Ordering

Unit Price$0.3761

Basic Information

Manufacturer STMicroelectronics
Manufacturer Part Number VIPER26LDTR
IC Category RF Integrated Circuits
Package SO-16
Lifecycle Status Active

Technical Attributes

Output Isolation Either
Internal Switch(s) Yes
Voltage - Breakdown 800V
Topology Flyback
Voltage - Start Up 13 V
Voltage - Supply (Vcc/Vdd) 11.5V ~ 23.5V
Duty Cycle 70%
Frequency - Switching 60kHz
Power (Watts) 20 W
Fault Protection Current Limiting, Over Temperature
Control Features -
Operating Temperature -40 degC ~ 150 degC (TJ)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Mounting Type Surface Mount

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
