STMicroelectronics

E-L9935013TR - STMicroelectronics Drif- og tengisamrásir

Name: E-L9935013TR - STMicroelectronics Drif- og tengisamrásir
Brand: STMicroelectronics
SKU: E-L9935013TR
Price: 3.22 USD
Availability: InStock

In stock

SKU: E-L9935013TR

(0)

$3.22

Eftir að þú hefur lagt inn pöntun mun söluteymi okkar senda skriflega staðfestingu á endanlegu verði, sendingarkostnaði og áætlaðan afhendingartíma. Aðflutningsgjöld, skattar, miðlunargjöld og önnur áfangastaðagjöld eru á ábyrgð viðskiptavinarins. Þegar þörf krefur getum við aðstoðað með tiltækar vöruupplýsingar og tollskjöl fyrir innflutningsskýrslu; endanleg tollafgreiðsla og greiðsla er áfram á ábyrgð viðskiptavinarins.

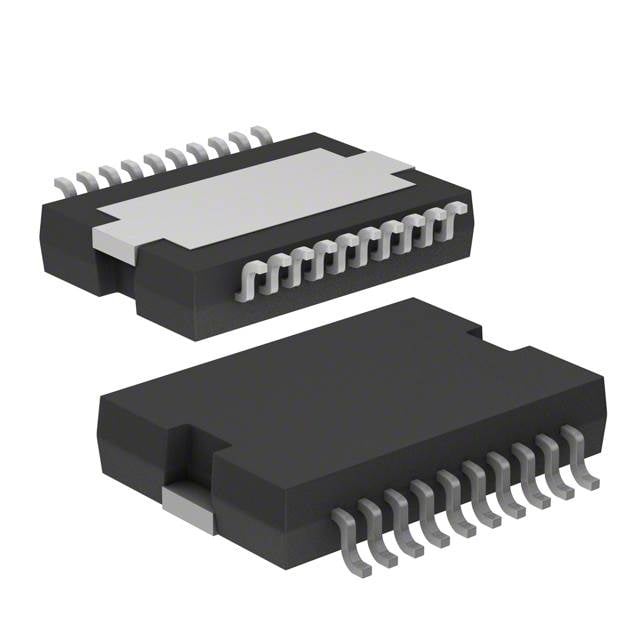

E-L9935013TR

8V~24V (4) DMOS dualelectric 8V 24V SPI Control and Power Stage, Driver - Fully Integrated surface mount 3.3mm(high)

Available Stock: 21600IC PackageObsolete

ManufacturerSTMicroelectronics

PackageIC Package

Stock21600

Standard Pack600

Pricing & Ordering

Unit Price$3.2200

Basic Information

Manufacturer	STMicroelectronics
Manufacturer Part Number	E-L9935013TR
IC Category	Driver & Interface Integrated Circuits
Package	IC Package
Lifecycle Status	Obsolete

Technical Attributes

Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (4)
Interface	SPI
Technology	DMOS
Step Resolution	1, 1/2
Applications	General Purpose
Current - Output	1.2A
Voltage - Supply	8V ~ 24V
Voltage - Load	8V ~ 24V
Operating Temperature	-40 degC ~ 150 degC (TJ)
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package	PowerSO-20

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
