IR2103STRPBF - Infineon Technologies Samrásir og örflögur
Regular price
$0.66
Eftir að þú hefur lagt inn pöntun mun söluteymi okkar senda skriflega staðfestingu á endanlegu verði, sendingarkostnaði og áætlaðan afhendingartíma. Aðflutningsgjöld, skattar, miðlunargjöld og önnur áfangastaðagjöld eru á ábyrgð viðskiptavinarins. Þegar þörf krefur getum við aðstoðað með tiltækar vöruupplýsingar og tollskjöl fyrir innflutningsskýrslu; endanleg tollafgreiðsla og greiðsla er áfram á ábyrgð viðskiptavinarins.
Couldn't load pickup availability

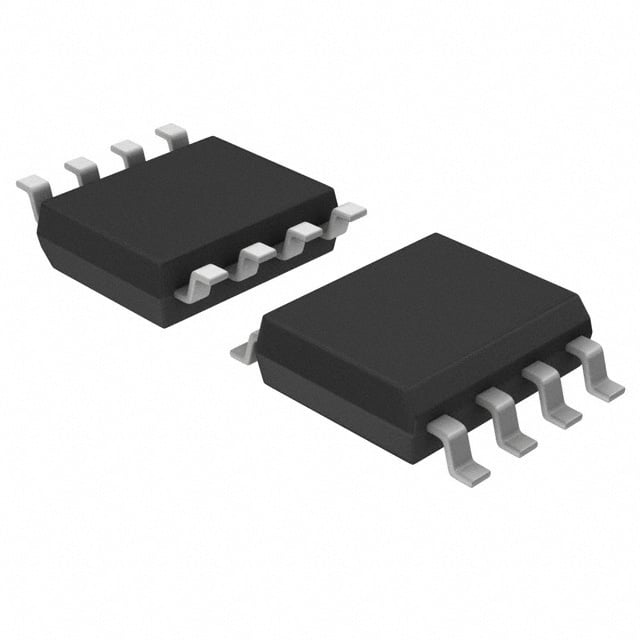

IR2103STRPBF
8 drive, SOIC 8N package
Available Stock: 3695SOIC-8Active
ManufacturerInfineon Technologies
PackageSOIC-8
Stock3695
Standard Pack2500
Pricing & Ordering
Unit Price$0.6566
Basic Information
| Manufacturer | Infineon Technologies |
|---|---|
| Manufacturer Part Number | IR2103STRPBF |
| IC Category | Integrated Circuits & Chips |
| Package | SOIC-8 |
| Lifecycle Status | Active |
Technical Attributes
| Programmable | Not Verified |
|---|---|
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 210mA, 360mA |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 100ns, 50ns |
| Operating Temperature | -40 degC ~ 150 degC (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
