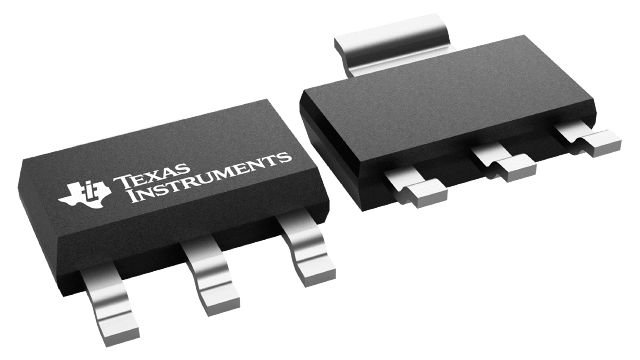

LM1117MPX-3.3/NOPB official Texas Instruments exact-order-code package image

TI

LM1117MPX-3.3/NOPB - Texas Instruments Samrásir

Name: LM1117MPX-3.3/NOPB - Texas Instruments Samrásir
Brand: TI
SKU: LM1117MPX-3.3/NOPB-TI-SOT-223-4
Price: 0.28 USD
Availability: InStock

In stock

SKU: LM1117MPX-3.3/NOPB-TI-SOT-223-4

(0)

$0.28

Magnafsláttur

Quantity	Unit Price
5+	$0.28
50+	$0.22
150+	$0.19
500+	$0.16
2000+	$0.15
4000+	$0.15

Eftir að þú hefur lagt inn pöntun mun söluteymi okkar senda skriflega staðfestingu á endanlegu verði, sendingarkostnaði og áætlaðan afhendingartíma. Aðflutningsgjöld, skattar, miðlunargjöld og önnur áfangastaðagjöld eru á ábyrgð viðskiptavinarins. Þegar þörf krefur getum við aðstoðað með tiltækar vöruupplýsingar og tollskjöl fyrir innflutningsskýrslu; endanleg tollafgreiðsla og greiðsla er áfram á ábyrgð viðskiptavinarins.

Integrated Circuit

LM1117MPX-3.3/NOPB

IC REG LINEAR 3.3V 800MA SOT-223

In Stock IC Package {'Id': 0, 'Status': 'Active'}

ManufacturerTI

Package-

Stock-

Pack-

Basic Information

Manufacturer	TI
Manufacturer Part Number	LM1117MPX-3.3/NOPB
Description	IC REG LINEAR 3.3V 800MA SOT-223
IC Category	Integrated Circuits
Package	-
Packaging	-
Standard Pack Quantity	-
Available Stock	-
Lifecycle Status	{'Id': 0, 'Status': 'Active'}

Key Specifications

Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.2V @ 800mA

Technical Attributes

Current - Output	800mA
Current - Quiescent (Iq)	10 mA
PSRR	64dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
