NCP1117STAT3G - onsemi Spennustillar – línulegir lágspennufallsstillar (LDO)
Regular price
$0.33
Magnafsláttur
| Quantity | Unit Price |
|---|---|
| 5+ | $0.33 |
| 50+ | $0.26 |
| 150+ | $0.23 |
| 500+ | $0.14 |
| 2500+ | $0.13 |
| 4000+ | $0.12 |
Eftir að þú hefur lagt inn pöntun mun söluteymi okkar senda skriflega staðfestingu á endanlegu verði, sendingarkostnaði og áætlaðan afhendingartíma. Aðflutningsgjöld, skattar, miðlunargjöld og önnur áfangastaðagjöld eru á ábyrgð viðskiptavinarins. Þegar þörf krefur getum við aðstoðað með tiltækar vöruupplýsingar og tollskjöl fyrir innflutningsskýrslu; endanleg tollafgreiðsla og greiðsla er áfram á ábyrgð viðskiptavinarins.
Couldn't load pickup availability
Integrated Circuit
NCP1117STAT3G
IC REG LINEAR POS ADJ 1A SOT-223
In Stock

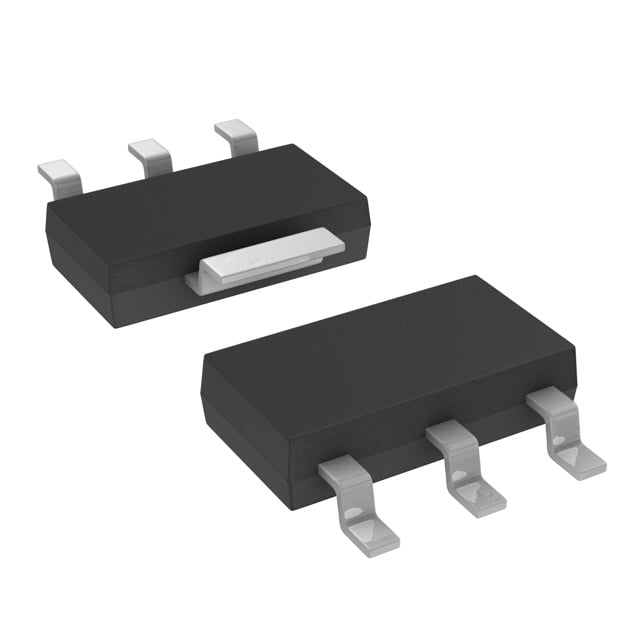

SOT-223
{'Id': 0, 'Status': 'Active'}
Manufactureronsemi
PackageSOT-223
Stock16480
PackTape & Reel (TR)
Basic Information
| Manufacturer | onsemi |
|---|---|
| Manufacturer Part Number | NCP1117STAT3G |
| Description | IC REG LINEAR POS ADJ 1A SOT-223 |
| IC Category | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
| Package | SOT-223 |
| Packaging | Tape & Reel (TR) |
| Standard Pack Quantity | 4000 |
| Available Stock | 16480 |
| Lifecycle Status | {'Id': 0, 'Status': 'Active'} |
Key Specifications
| Output Configuration | Positive |
|---|---|
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 18.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA |
Technical Attributes
| Current - Output | 1A |
|---|---|
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 73dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
