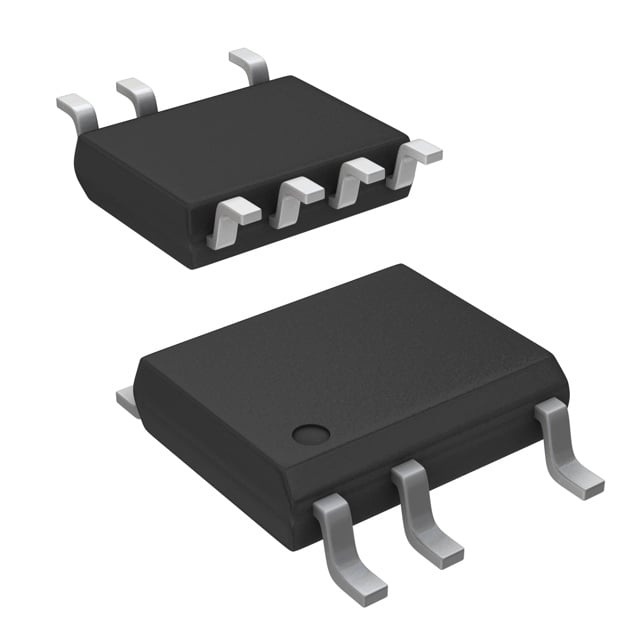

LM25101CMAX/NOPB SOIC-8 official package render
LM25101CMAX/NOPB SOIC-8 official package render
Texas Instruments

LM25101CMAX/NOPB - Texas Instruments Circuiti integrati RF

In stock
(0)
$2.81
Dopo aver effettuato un ordine, il nostro team di vendita invierà una conferma scritta del prezzo finale, delle spese di spedizione e dei tempi di consegna stimati. I dazi doganali, le tasse, le commissioni di intermediazione e altre spese di destinazione sono a carico del cliente. Se necessario, possiamo fornire assistenza con le informazioni sul prodotto disponibili e i documenti doganali per la dichiarazione di importazione; lo sdoganamento finale e il pagamento restano a carico del cliente.

LM25101CMAX/NOPB

990ns 2 9V 26ns(Typ) 14V 2.3V, - Non-Inverting MOSFET, N 715ns 1A, 1A SOIC-8 surface mount 1.5mm(high)

Available Stock: 1SOIC-8Active
ManufacturerTexas Instruments
PackageSOIC-8
Stock1
Standard Pack2500

Pricing & Ordering

Unit Price$4.2525

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number LM25101CMAX/NOPB
IC Category RF Integrated Circuits
Package SOIC-8
Lifecycle Status Active

Technical Attributes

Programmable Not Verified
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type MOSFET (N-Channel)
Voltage - Supply 9V ~ 14V
Logic Voltage - VIL, VIH 2.3V, -
Current - Peak Output (Source, Sink) 1A, 1A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 100 V
Rise / Fall Time (Typ) 990ns, 715ns
Operating Temperature -40 degC ~ 125 degC (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
