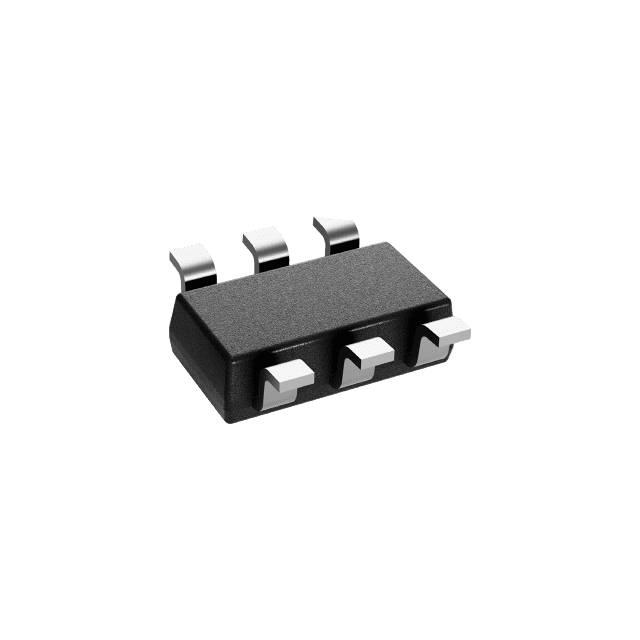

TPS56339DDCR SOT-23-THN-6 (DDC) logo-free package illustration
TPS56339DDCR SOT-23-THN-6 (DDC) logo-free package illustration
TI

TPS56339DDCR - Texas Instruments Regolatori di tensione – regolatori switching DC/DC

In stock
SKU: TPS56339DDCR-SOT-23-THN-6
(0)
$0.37
Sconti sulla quantità
QuantityUnit Price
1+$0.36
10+$0.28
30+$0.25
100+$0.20
500+$0.19
1000+$0.17
Dopo aver effettuato un ordine, il nostro team di vendita invierà una conferma scritta del prezzo finale, delle spese di spedizione e dei tempi di consegna stimati. I dazi doganali, le tasse, le commissioni di intermediazione e altre spese di destinazione sono a carico del cliente. Se necessario, possiamo fornire assistenza con le informazioni sul prodotto disponibili e i documenti doganali per la dichiarazione di importazione; lo sdoganamento finale e il pagamento restano a carico del cliente.

Integrated Circuit

TPS56339DDCR

Buck Switching Regulator IC Adjustable 0.8V~16V 1 Output 3A TSOT-23-6

In Stock SOT-23-THN-6 (DDC) normal
Unit Price$0.3607
In Stock
ManufacturerTI
PackageSOT-23-THN-6 (DDC)
Stock15632
PackTape & Reel (TR)

Basic Information

Manufacturer TI
Manufacturer Part Number TPS56339DDCR
Description Buck Switching Regulator IC Adjustable 0.8V~16V 1 Output 3A TSOT-23-6
IC Category Voltage Regulators - DC DC Switching Regulators
Package SOT-23-THN-6 (DDC)
Packaging Tape & Reel (TR)
Standard Pack Quantity 3000
Available Stock 15632
Availability In Stock
Lifecycle Status normal

Key Specifications

Operating Temperature -40℃~+125℃@(TJ)
Frequency - Switching 500kHz
Function Step-down type
Number of Outputs 1
Features Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
Output Type Adjustable
Topology Buck

Technical Attributes

Operating Voltage 4.5V~24V
Switch tube (built-in/external) Built-in
Output Voltage 800mV~16V
Output Current 3A
Quiescent Current 98uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Package: SOT-23-THN-6 (DDC); 6 pins. Verified for TPS56339DDCR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
