UCC21736QDWRQ1 - Texas Instruments Circuiti integrati RF
Regular price
$5.54
Dopo aver effettuato un ordine, il nostro team di vendita invierà una conferma scritta del prezzo finale, delle spese di spedizione e dei tempi di consegna stimati. I dazi doganali, le tasse, le commissioni di intermediazione e altre spese di destinazione sono a carico del cliente. Se necessario, possiamo fornire assistenza con le informazioni sul prodotto disponibili e i documenti doganali per la dichiarazione di importazione; lo sdoganamento finale e il pagamento restano a carico del cliente.
Couldn't load pickup availability

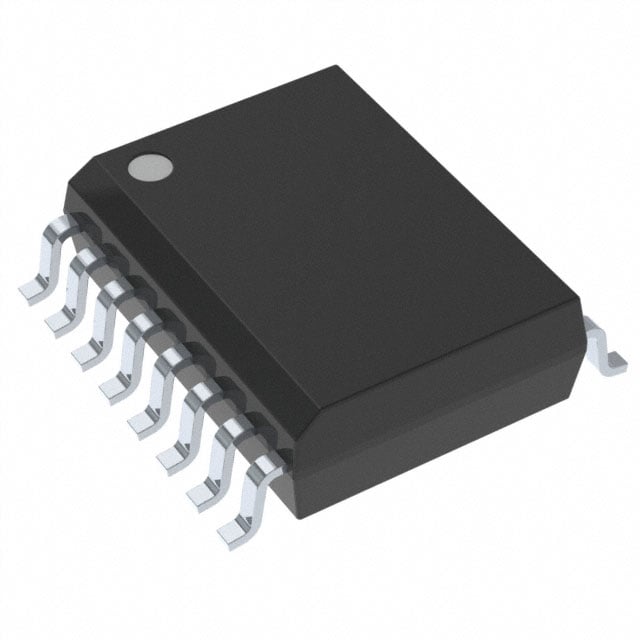

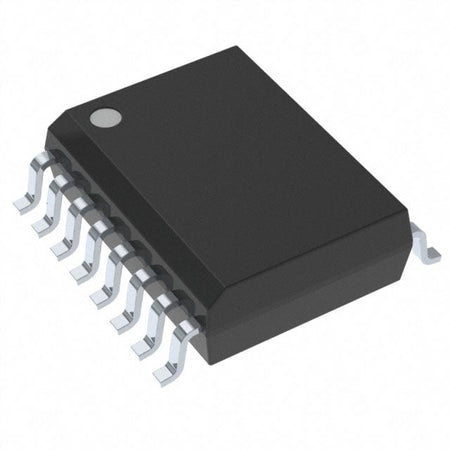

UCC21736QDWRQ1
28ns 1 3V 5.5V 24ns(Max), SOIC-16 surface mount, adhesive mount
Available Stock: 297990SOIC-16Obsolete
ManufacturerTexas Instruments
PackageSOIC-16
Stock297990
Standard Pack-
Pricing & Ordering
Unit Price$5.5421
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | UCC21736QDWRQ1 |
| IC Category | RF Integrated Circuits |
| Package | SOIC-16 |
| Lifecycle Status | Obsolete |
Technical Attributes
| Technology | Capacitive Coupling |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 150V/ns |
| Propagation Delay tpLH / tpHL (Max) | 130ns, 130ns |
| Pulse Width Distortion (Max) | 30ns |
| Rise / Fall Time (Typ) | 28ns, 24ns (Max) |
| Current - Output High, Low | 10A, 10A |
| Current - Peak Output | 10A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 13V ~ 33V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Approval Agency | UL, VDE |
