ACPL-312T-500E - BROADCOM Litar Bersepadu RF
Regular price
$4.73
Selepas anda membuat pesanan, pasukan jualan kami akan menghantar pengesahan bertulis tentang harga akhir, caj penghantaran dan anggaran masa utama penghantaran. Duti import, cukai, yuran pembrokeran dan caj destinasi lain adalah tanggungjawab pelanggan. Apabila diperlukan, kami boleh membantu dengan maklumat produk yang tersedia dan dokumen kastam untuk pengisytiharan import; pelepasan kastam akhir dan pembayaran tetap menjadi tanggungjawab pelanggan.
Couldn't load pickup availability
ACPL-312T-500E
500ns 15V 500ns, 500ns 30V 500ns DIP-8Gullwing surface mount, adhesive mount
Available Stock: 39SOP-8Active
ManufacturerBROADCOM

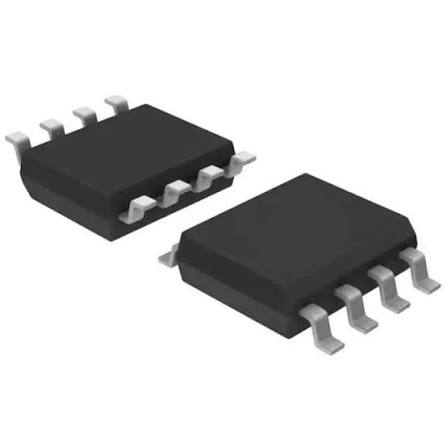

PackageSOP-8
Stock39
Standard Pack1000
Pricing & Ordering
Unit Price$4.7271
Basic Information
| Manufacturer | BROADCOM |
|---|---|
| Manufacturer Part Number | ACPL-312T-500E |
| IC Category | RF Integrated Circuits |
| Package | SOP-8 |
| Lifecycle Status | Active |
Technical Attributes
| Technology | Optical Coupling |
|---|---|
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 15V ~ 30V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-DIP Gull Wing |
| Approval Agency | CSA, IEC/EN/DIN, UR |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
