PS9552-V-AX - Renesas Electronics Litar Bersepadu dan Cip

Name: PS9552-V-AX - Renesas Electronics Litar Bersepadu dan Cip
Brand: Renesas Electronics
SKU: PS9552-V-AX-DIP-8
Price: 3.44 USD
Availability: InStock

In stock

SKU: PS9552-V-AX-DIP-8

(0)

$3.44

Selepas anda membuat pesanan, pasukan jualan kami akan menghantar pengesahan bertulis tentang harga akhir, caj penghantaran dan anggaran masa utama penghantaran. Duti import, cukai, yuran pembrokeran dan caj destinasi lain adalah tanggungjawab pelanggan. Apabila diperlukan, kami boleh membantu dengan maklumat produk yang tersedia dan dokumen kastam untuk pengisytiharan import; pelepasan kastam akhir dan pembayaran tetap menjadi tanggungjawab pelanggan.

PS9552-V-AX

500ns 15V 500ns, 500ns 500ns DIP-8 mount

Available Stock: 655DIP-8Obsolete

ManufacturerRenesas Electronics

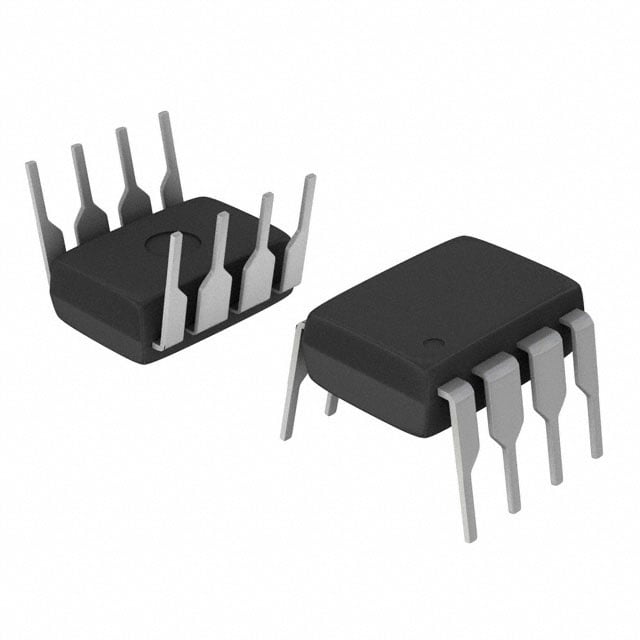

PackageDIP-8

Stock655

Standard Pack1

Pricing & Ordering

Unit Price$3.4396

Basic Information

Manufacturer	Renesas Electronics
Manufacturer Part Number	PS9552-V-AX
IC Category	Integrated Circuits & Chips
Package	DIP-8
Lifecycle Status	Obsolete

Technical Attributes

Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2A, 2A
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40 degC ~ 100 degC
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
Approval Agency	BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
