UCC21530BQDWKRQ1 - Texas Instruments Litar Bersepadu RF
Regular price
$4.54
Selepas anda membuat pesanan, pasukan jualan kami akan menghantar pengesahan bertulis tentang harga akhir, caj penghantaran dan anggaran masa utama penghantaran. Duti import, cukai, yuran pembrokeran dan caj destinasi lain adalah tanggungjawab pelanggan. Apabila diperlukan, kami boleh membantu dengan maklumat produk yang tersedia dan dokumen kastam untuk pengisytiharan import; pelepasan kastam akhir dan pembayaran tetap menjadi tanggungjawab pelanggan.
Couldn't load pickup availability

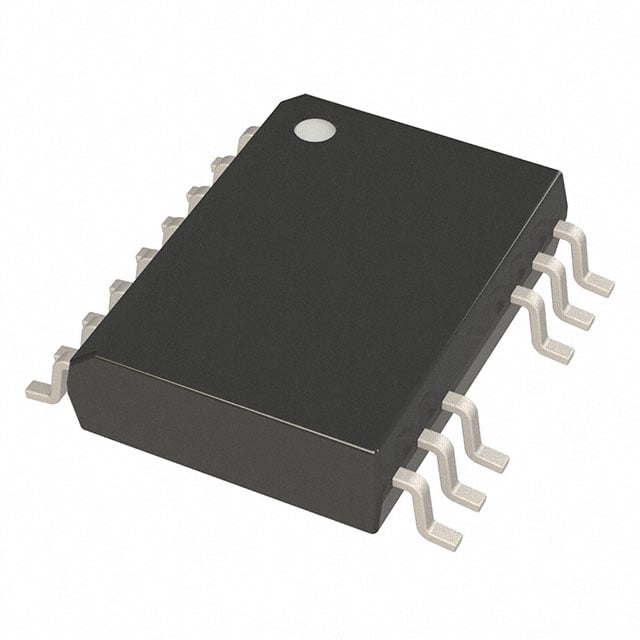

UCC21530BQDWKRQ1
6ns 3V 30ns 18V 7ns SOIC-14 surface mount, adhesive mount
Available Stock: 2363SOIC-14Active
ManufacturerTexas Instruments
PackageSOIC-14
Stock2363
Standard Pack2000
Pricing & Ordering
Unit Price$4.5416
Basic Information
| Manufacturer | Texas Instruments |
|---|---|
| Manufacturer Part Number | UCC21530BQDWKRQ1 |
| IC Category | RF Integrated Circuits |
| Package | SOIC-14 |
| Lifecycle Status | Active |
Technical Attributes
| Technology | Capacitive Coupling |
|---|---|
| Number of Channels | 2 |
| Voltage - Isolation | 5700Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 30ns, 30ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Current - Output High, Low | 4A, 6A |
| Current - Peak Output | 4A, 6A |
| Voltage - Forward (Vf) (Typ) | - |
| Voltage - Output Supply | 14.7V ~ 25V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Operating Temperature | -40 degC ~ 125 degC |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Approval Agency | CQC, CSA, UL, VDE |
Documents & Engineering Resources
Inventory and pricing are updated regularly. Technical data is provided for engineering reference.
Datasheet PDF
