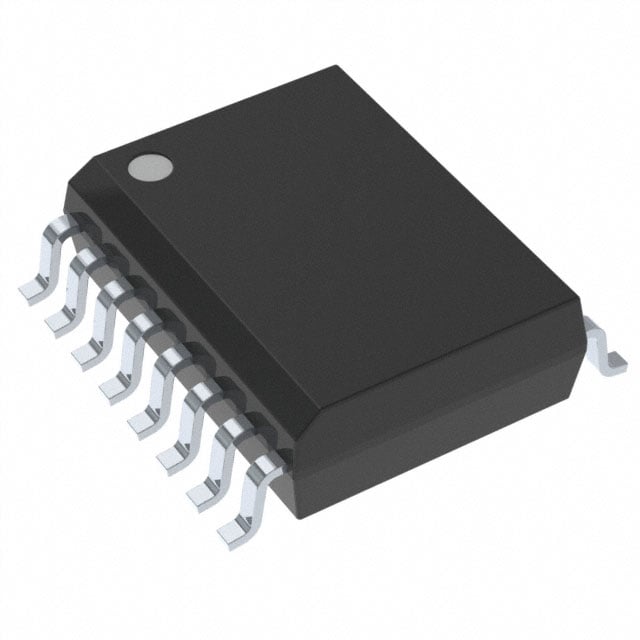

UCC21540DW SOIC-16 package

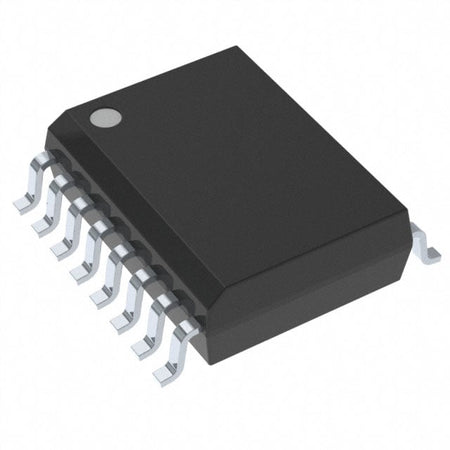

UCC21540DW SOIC-16 package
Texas Instruments

UCC21540DW - Texas Instruments Litar Bersepadu RF

In stock
SKU: UCC21540DW-SOIC-16
(0)
$3.74
Selepas anda membuat pesanan, pasukan jualan kami akan menghantar pengesahan bertulis tentang harga akhir, caj penghantaran dan anggaran masa utama penghantaran. Duti import, cukai, yuran pembrokeran dan caj destinasi lain adalah tanggungjawab pelanggan. Apabila diperlukan, kami boleh membantu dengan maklumat produk yang tersedia dan dokumen kastam untuk pengisytiharan import; pelepasan kastam akhir dan pembayaran tetap menjadi tanggungjawab pelanggan.

UCC21540DW

5ns 2 3V 40ns 5.5V 6ns SOIC-16 surface mount 10.3mm*7.5mm*2.65mm

Available Stock: 96645SOIC-16Obsolete
ManufacturerTexas Instruments
PackageSOIC-16
Stock96645
Standard Pack-

Pricing & Ordering

Unit Price$3.7405

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number UCC21540DW
IC Category RF Integrated Circuits
Package SOIC-16
Lifecycle Status Obsolete

Technical Attributes

Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 100V/ns
Propagation Delay tpLH / tpHL (Max) 40ns, 40ns
Pulse Width Distortion (Max) 5.5ns
Rise / Fall Time (Typ) 5ns, 6ns
Current - Output High, Low -
Current - Peak Output 4A, 6A
Voltage - Forward (Vf) (Typ) -
Voltage - Output Supply 9.2V ~ 18V
Grade -
Qualification -
Operating Temperature -40 degC ~ 125 degC
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, UL, VDE

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open datasheet PDF
