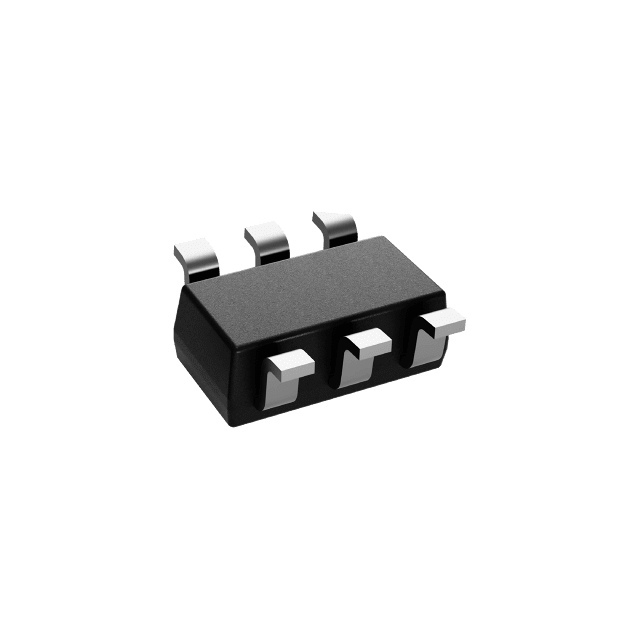

TPS560430YFDBVR SOT-23-6 (DBV) logo-free package illustration

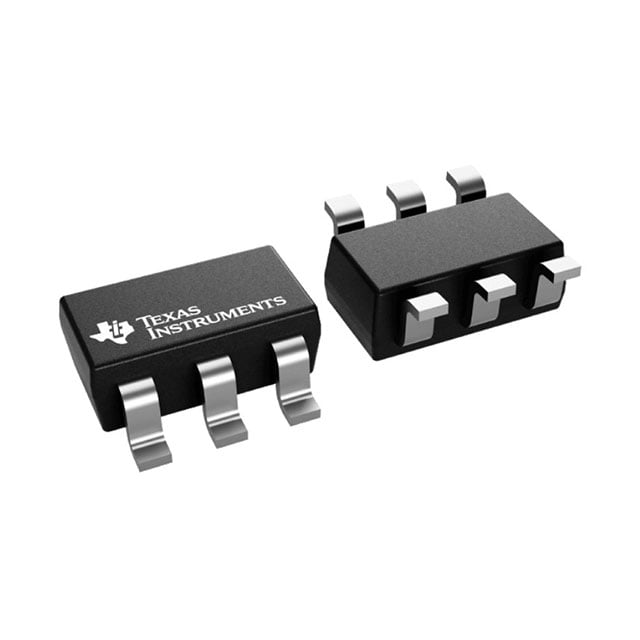

TPS560430YFDBVR TI 6-lead SOT-23 (DBV), 2.9 x 1.6mm body, 0.95mm pitch package
TPS560430YFDBVR SOT-23-6 (DBV) logo-free package illustration
TPS560430YFDBVR TI 6-lead SOT-23 (DBV), 2.9 x 1.6mm body, 0.95mm pitch package
TI

TPS560430YFDBVR - Texas Instruments Spanningsregelaars – DC/DC-schakelregelaars

In stock
SKU: TPS560430YFDBVR-SOT-23-6
(0)
$1.42
Volumekortingen
QuantityUnit Price
1+$1.43
10+$1.19
30+$1.06
100+$0.91
500+$0.84
1000+$0.81
Nadat u een bestelling heeft geplaatst, stuurt ons verkoopteam een ​​schriftelijke bevestiging van de uiteindelijke prijs, verzendkosten en geschatte levertijd. Invoerrechten, belastingen, makelaarskosten en andere bestemmingskosten zijn de verantwoordelijkheid van de klant. Indien nodig kunnen wij u helpen met beschikbare productinformatie en douanedocumenten voor aangifte ten invoer; de uiteindelijke inklaring en betaling blijven de verantwoordelijkheid van de klant.

Integrated Circuit

TPS560430YFDBVR

Buck Switching Regulator IC Adjustable 1V~34.2V 1 Output 600mA SOT-23-6

In Stock SOT-23-6 (DBV) normal
Unit Price$1.4335
In Stock
ManufacturerTI
PackageSOT-23-6 (DBV)
Stock9175
PackTape & Reel (TR)

Basic Information

Manufacturer TI
Manufacturer Part Number TPS560430YFDBVR
Description Buck Switching Regulator IC Adjustable 1V~34.2V 1 Output 600mA SOT-23-6
IC Category Voltage Regulators - DC DC Switching Regulators
Package SOT-23-6 (DBV)
Packaging Tape & Reel (TR)
Standard Pack Quantity 3000
Available Stock 9175
Availability In Stock
Lifecycle Status normal

Key Specifications

Operating Temperature -40 C~+125 C@(TJ)
Frequency-Switching 2.1MHz
Function Step-down type
Number of Outputs 1
Features Cycle-by-cycle current limiting; Hiccup current limiting; Overcurrent Protection; Light load efficient mode
Output Type Adjustable
Topology Buck

Technical Attributes

Voltage - Supply 4V~36V
Switch tube (built-in/external) Built-in
Current - Output 600mA
Voltage - Output 1V~34.2V
Quiescent Current 80uA

Documents & Engineering Resources

Inventory, lead time, and pricing are updated regularly. Technical data is provided for engineering reference.

Package: SOT-23-6 (DBV); 6 pins. Verified for TPS560430YFDBVR against manufacturer package information. The image is a representative package illustration, not a pin-assignment or mechanical design reference.

Datasheet PDF

Open PDF
