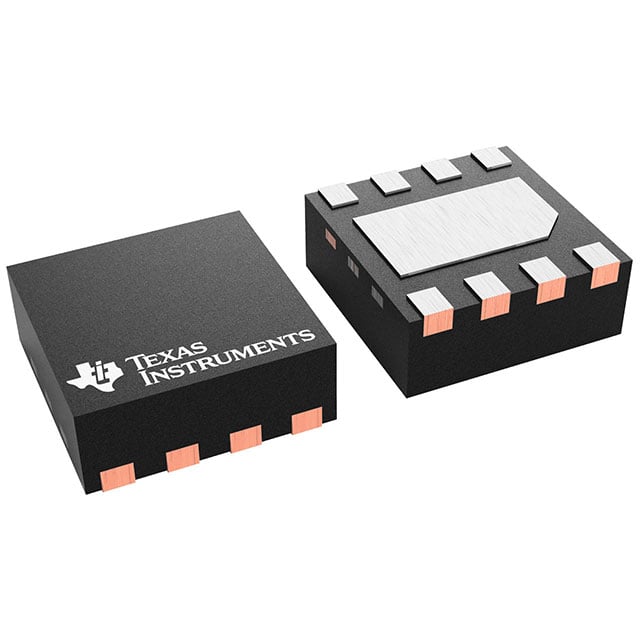

DRV8231ADSGR WSON-8 package
DRV8231ADSGR WSON-8 package
Texas Instruments

DRV8231ADSGR - Texas Instruments Circuitos integrados de controladores e interfaces

In stock
SKU: DRV8231ADSGR-WSON-8
(0)
$1.47
Depois de fazer um pedido, nossa equipe de vendas enviará uma confirmação por escrito do preço final, despesas de envio e prazo estimado de entrega. Direitos de importação, impostos, taxas de corretagem e outros encargos de destino são de responsabilidade do cliente. Quando necessário, podemos auxiliar com informações disponíveis sobre produtos e documentos aduaneiros para declaração de importação; o desembaraço aduaneiro final e o pagamento permanecem de responsabilidade do cliente.

DRV8231ADSGR

4.5V~33V H NMOS 3.7A dualelectric 4.5V 33V PWM Control and Power Stage, Driver - Fully Integrated WSON-8 surface mount, adhesive mount 2mm()*2mm(wide)

Available Stock: 2799WSON-8Active
ManufacturerTexas Instruments
PackageWSON-8
Stock2799
Standard Pack3000

Pricing & Ordering

Unit Price$1.4740

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number DRV8231ADSGR
IC Category Driver & Interface Integrated Circuits
Package WSON-8
Lifecycle Status Active

Technical Attributes

Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface PWM
Technology NMOS
Step Resolution -
Applications Printer
Current - Output 3.7A
Voltage - Supply 4.5V ~ 33V
Voltage - Load 4.5V ~ 33V
Operating Temperature -40 degC ~ 125 degC (TA)
Mounting Type Surface Mount
Package / Case 8-WFDFN Exposed Pad
Supplier Device Package 8-WSON (2x2)

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
