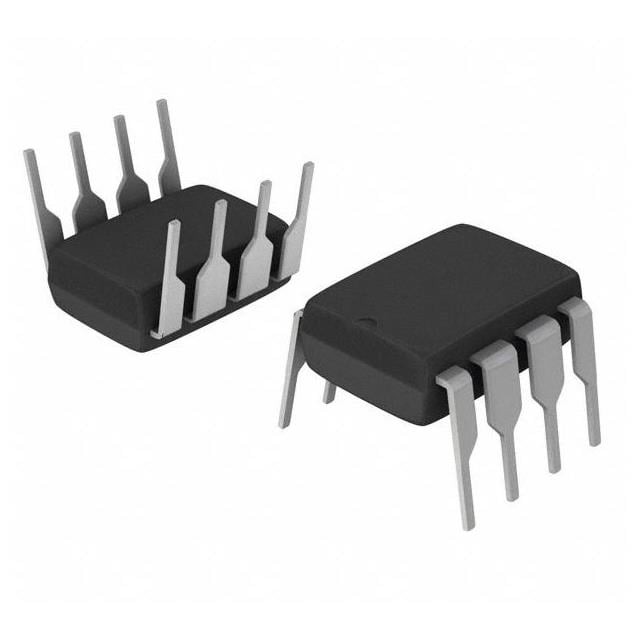

IR2153PBF PDIP-8 package
IR2153PBF PDIP-8 package
Infineon Technologies

IR2153PBF - Infineon Technologies Circuitos integrados e chips

In stock
SKU: IR2153PBF-PDIP-8
(0)
$1.05
Depois de fazer um pedido, nossa equipe de vendas enviará uma confirmação por escrito do preço final, despesas de envio e prazo estimado de entrega. Direitos de importação, impostos, taxas de corretagem e outros encargos de destino são de responsabilidade do cliente. Quando necessário, podemos auxiliar com informações disponíveis sobre produtos e documentos aduaneiros para declaração de importação; o desembaraço aduaneiro final e o pagamento permanecem de responsabilidade do cliente.

IR2153PBF

80ns 2 10V 15.6V 0.8V/2V RC Input Circuit MOSFET, N 45ns PDIP-8 mount 1.5mm(high)

Available Stock: 37PDIP-8Check availability
ManufacturerInfineon Technologies
PackagePDIP-8
Stock37
Standard Pack50

Pricing & Ordering

Unit Price$1.0466

Basic Information

Manufacturer Infineon Technologies
Manufacturer Part Number IR2153PBF
IC Category Integrated Circuits & Chips
Package PDIP-8
Lifecycle Status Check availability

Technical Attributes

Programmable Not Verified
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type MOSFET (N-Channel)
Voltage - Supply 10V ~ 15.6V
Logic Voltage - VIL, VIH -
Current - Peak Output (Source, Sink) -
Input Type RC Input Circuit
High Side Voltage - Max (Bootstrap) 600 V
Rise / Fall Time (Typ) 80ns, 45ns
Operating Temperature -40 degC ~ 125 degC (TJ)
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-PDIP

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet

Download PDF
