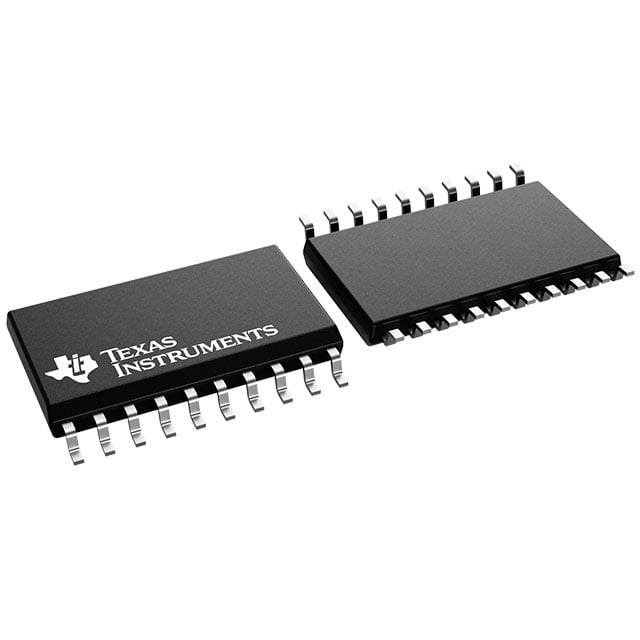

TLC1543QDWG4 SOIC-20 package
TLC1543QDWG4 SOIC-20 package
Texas Instruments

TLC1543QDWG4 - Texas Instruments Circuitos integrados de RF

In stock
SKU: TLC1543QDWG4-SOIC-20
(0)
$15.87
Depois de fazer um pedido, nossa equipe de vendas enviará uma confirmação por escrito do preço final, despesas de envio e prazo estimado de entrega. Direitos de importação, impostos, taxas de corretagem e outros encargos de destino são de responsabilidade do cliente. Quando necessário, podemos auxiliar com informações disponíveis sobre produtos e documentos aduaneiros para declaração de importação; o desembaraço aduaneiro final e o pagamento permanecem de responsabilidade do cliente.

TLC1543QDWG4

5V 38Ksps 10bit 11 10 SPI Single-Ended 5V SAR SOIC-20 surface mount 12.8mm*7.52mm*2.35mm

Available Stock: 5975SOIC-20Obsolete
ManufacturerTexas Instruments
PackageSOIC-20
Stock5975
Standard Pack-

Pricing & Ordering

Unit Price$15.8681

Basic Information

Manufacturer Texas Instruments
Manufacturer Part Number TLC1543QDWG4
IC Category RF Integrated Circuits
Package SOIC-20
Lifecycle Status Obsolete

Technical Attributes

Number of Bits 10
Sampling Rate (Per Second) 38k
Number of Inputs 11
Input Type Single Ended
Data Interface SPI
Configuration MUX-S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 1
Architecture SAR
Reference Type External
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 5V
Features Selectable Address
Operating Temperature -40 degC ~ 125 degC
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Mounting Type Surface Mount

Documents & Engineering Resources

Datasheet PDF

Inventory and pricing are updated regularly. Technical data is provided for engineering reference.

Datasheet PDF

Open PDF
